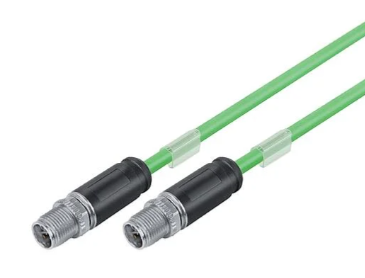

XS-MS8TZ-T892+XS-MS8 – HTM Sensors Double Ended Cable M12 X-Coded Male Straight M12 X-Coded Male Straight 2 m PUR
by HTM
CALL or click FOR QUOTE
The HTM Sensors XS-MS8TZ-T892+XS-MS8 is a Double Ended Cable M12 X-Coded Male Straight M12 X-Coded Male Straight 2 m PUR. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | XS-MS8TZ-T892+XS-MS8 |
|---|---|
| Cable type | Double Ended Cable |
| Connector A | M12 X-Coded Male Straight |
| Connector B | M12 X-Coded Male Straight |
| Cable length | 2 m |
| Locking system | Screw |
| Rated current | 0.5 A |
| Rated voltage | 50 V AC / 60 V DC |
| Wire gauge | 4x2x26/7 AWG |
| Shielded | Yes to coupling nut |
| Contact carrier | PUR |
| Molded body | PUR |
| Contact material | CuZn |
| Contact plating | Au |
| Jacket type | PUR |
| Coupling nut | Zinc Die-cast Nickel-Plated |
| Protection rating | IP67 |
| Temperature range | -40 C - +80 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
