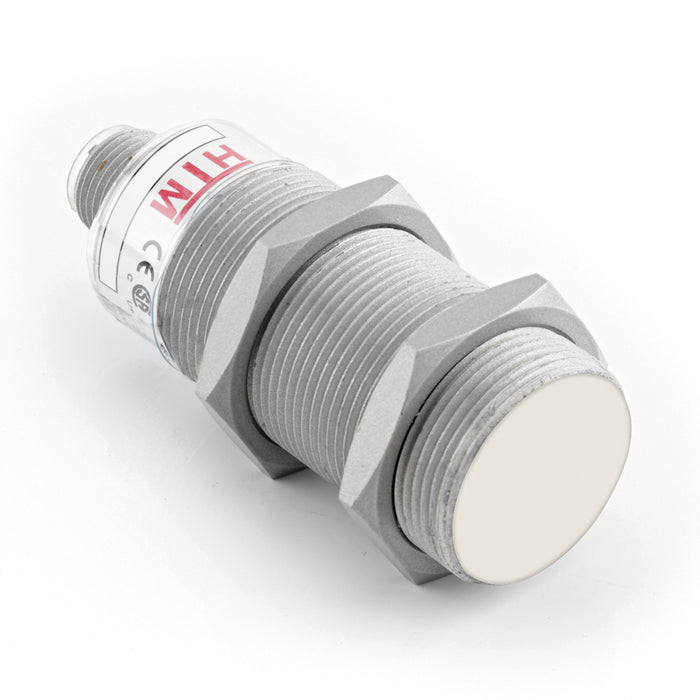

WCM1-3010U-AZL3 – HTM Sensors M30 Weld Field Immune Proximity Sensor Shielded 10 mm AC/DC NO 7/8" Mini Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors WCM1-3010U-AZL3 is an M30 shielded weld field immune proximity sensor with a 10 mm sensing range, an AC/DC normally open (NO) output, a 20-240 V AC/DC supply and a 7/8" Mini connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | WCM1-3010U-AZL3 |
|---|---|
| Type | Weld Field Immune Proximity Sensors |
| Shape | Cylindrical |
| Size | M30 |
| Sensing range | 10 mm |
| Mounting style | Shielded |
| Output type | AC/DC |
| Output function | Normally Open |
| Connection | 3 Pin Quick Disconnect |
| Connector | 7/8" Mini Connector |
| Body length | 92 mm |
| Housing | PTFE Coated Brass |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 20-240 V AC/DC |
| Current consumption | <10 mA |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Overload trip point | >220 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 25 Hz |
| Response time | 0.5 ms/0.5 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | Yes |
| Weld spatter resistant | No |
| Matching cable | Z-FS3KA-V085 (Straight Connector) |
| Matching bracket | HRAB-30 (Basic) / QT-30 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
