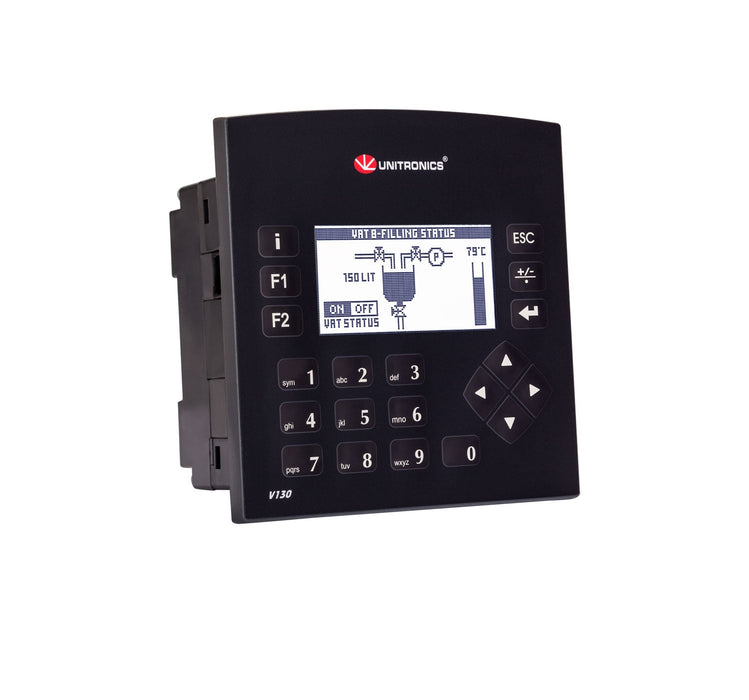

V130-33-TRA22 Unitronics Vision130 2.4" PLC + HMI – 8 DI (1 HSC), 2 AI/DI, 2 TC/PT, 4 Relay, 4 HSO, 2 AO
by Unitronics
CALL or click FOR QUOTE
The Unitronics V130-33-TRA22 is a Vision130 all-in-one PLC + HMI with a 2.4" monochrome graphic display with keypad, combining the controller and operator panel in one unit. Its onboard I/O is listed below, and it can be expanded with Unitronics I/O expansion modules.
Key Specifications
| Part number | V130-33-TRA22 |
|---|---|
| Type | PLC + HMI (all-in-one controller) |
| Series | Unitronics Vision130 |
| Display | 2.4" monochrome graphic display with keypad |
| Front panel | Silver bezel (Standard series) |
Features
- 8 digital inputs including 1 digital/ HSC
- 2 analog/digital inputs
- 2 PT100/TC or 2 digital inputs
- 4 relay outputs
- 4 npn- HSO- 5Hz-200kHz (2 PTO)
- 2 Analog outputs
- RS232/RS485
- 24VDC
Warranty & Shipping
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Sold and supported by United Industries, a certified Unitronics distributor.
Call for best price & availability: +1-800-724-4209
