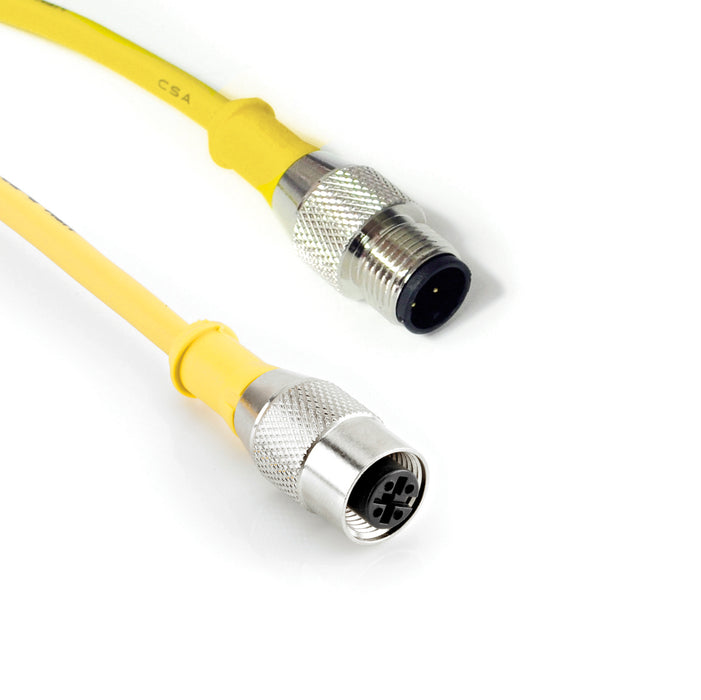

R-MS4TZ-V072+R-FS4TZ-V072 – HTM Sensors Double Ended Cable M12 A-Coded Male Straight M12 A-Coded Female Straight 4 Pin 2 m PVC
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-MS4TZ-V072+R-FS4TZ-V072 is a Double Ended Cable M12 A-Coded Male Straight M12 A-Coded Female Straight 4 Pin 2 m PVC. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-MS4TZ-V072+R-FS4TZ-V072 |
|---|---|
| Cable type | Double Ended Cable |
| Connector A | M12 A-Coded Male Straight |
| Connector B | M12 A-Coded Female Straight |
| Cable length | 2 m |
| Pins | 4 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V AC / 300 V DC |
| Wire gauge | 24 AWG |
| Stranding | 0.1x32 |
| Contact carrier | TPU |
| Body | TPU |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | PVC |
| Coupling nut | Nickle Plated Brass |
| Protection class | IP 68 |
| O-ring | Viton |
| Temperature range | -25 C - +90 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
