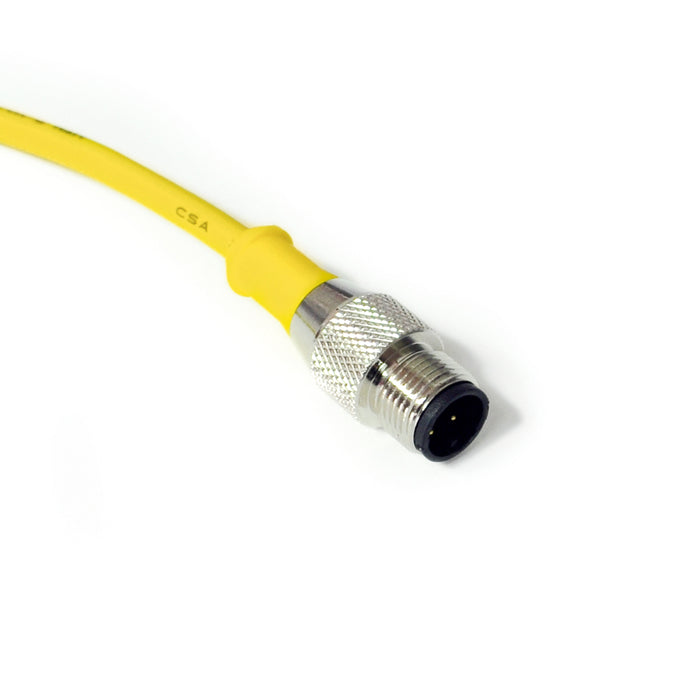

R-MS4TZ-V0710 – HTM Sensors Single Ended Cable M12 A-Coded Male Straight 4 Pin 10 m PVC
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-MS4TZ-V0710 is a Single Ended Cable M12 A-Coded Male Straight 4 Pin 10 m PVC. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-MS4TZ-V0710 |
|---|---|
| Cable type | Single Ended Cable |
| Connector B | M12 A-Coded Male Straight |
| Cable length | 10 m |
| Pins | 4 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V AC / 300 V DC |
| Wire gauge | 24 AWG |
| Stranding | 0.1x32 |
| Contact carrier | TPU |
| Body | TPU |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | PVC |
| Coupling nut | Nickel Plated Brass |
| Protection rating | IP68 |
| O-ring | N/A;Temperature Range=-25 C - +90 C" |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
