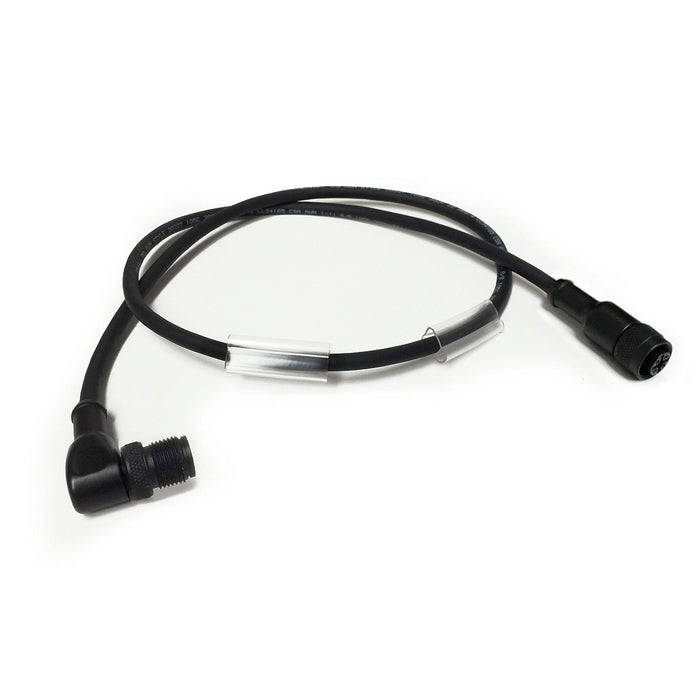

R-MA4TZ-T660.6+R-FS4TZ-T660.6 – HTM Sensors Double Ended Cable M12 A-Coded Male Angled M12 A-Coded Female Straight 4 Pin 0.6 m TPE
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-MA4TZ-T660.6+R-FS4TZ-T660.6 is a Double Ended Cable M12 A-Coded Male Angled M12 A-Coded Female Straight 4 Pin 0.6 m TPE. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-MA4TZ-T660.6+R-FS4TZ-T660.6 |
|---|---|
| Cable type | Double Ended Cable |
| Connector A | M12 A-Coded Male Angled |
| Connector B | M12 A-Coded Female Straight |
| Cable length | 0.6 m |
| Pins | 4 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Wire gauge | 22 AWG |
| Stranding | 0.1x34 |
| Contact carrier | PUR |
| Body | PUR |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | TPE |
| Coupling nut | PTFE Coated Brass |
| O-ring | Viton |
| Temperature range | -25 C - +105 C |
