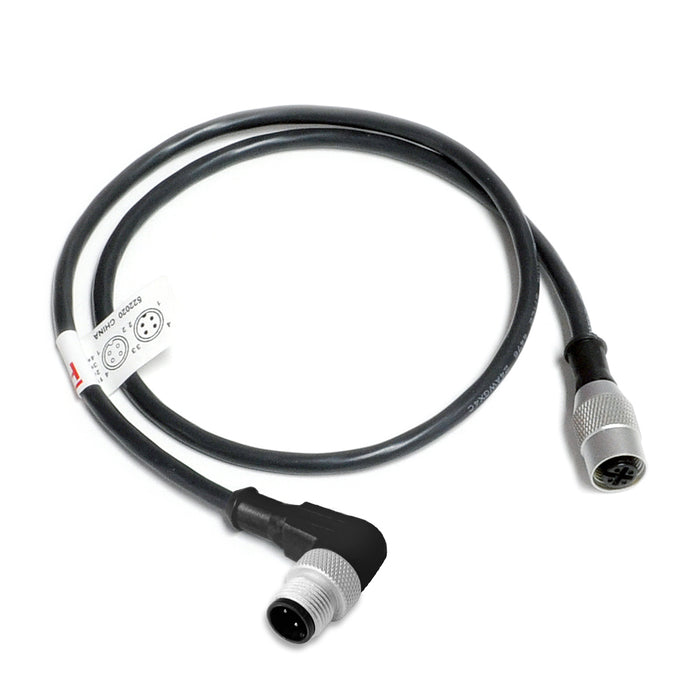

R-MA4TZ-S072+R-FS4TZ-S072 – HTM Sensors Double Ended Cable Male Angled Female Straight 4 Pin 2 m Silicone
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-MA4TZ-S072+R-FS4TZ-S072 is a Double Ended Cable Male Angled Female Straight 4 Pin 2 m Silicone. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-MA4TZ-S072+R-FS4TZ-S072 |
|---|---|
| Cable type | Double Ended Cable |
| Connector A | Male Angled |
| Connector B | Female Straight |
| Cable length | 2 m |
| Pins | 4 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V AC/300 V DC |
| Wire gauge | 4 x 24 AWG |
| Contact carrier | TPU |
| Molded body | TPU |
| Contact material | CuSn (Bronze) |
| Contact plating | Au (Gold) |
| Jacket type | Silicone |
| Coupling nut | PTFE Brass |
| Protection class | IP68 |
| O-ring | Viton |
| Temperature range | -25 C - +150 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
