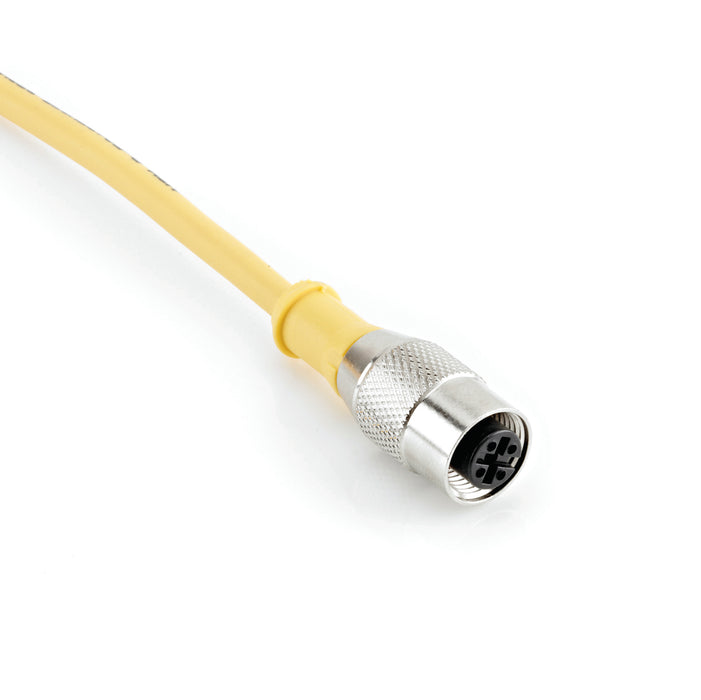

R-FS4TZ-V0725 – HTM Sensors Single Ended Cable M12 A-Coded Female Straight 25 m PVC
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-FS4TZ-V0725 is a Single Ended Cable M12 A-Coded Female Straight 25 m PVC. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-FS4TZ-V0725 |
|---|---|
| Cable type | Single Ended Cable |
| Connector B | M12 A-Coded Female Straight |
| Cable length | 25 m |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V AC / 300 V DC |
| Wire gauge | 24 AWG |
| Contact carrier | TPU |
| Body | TPU |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | PVC |
| Coupling nut | Nickel Plated Brass |
| Protection rating | IP68 |
| O-ring | Viton |
| Temperature range | -25 C - +90 C |
| LED | Power, 4 x PNP |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
