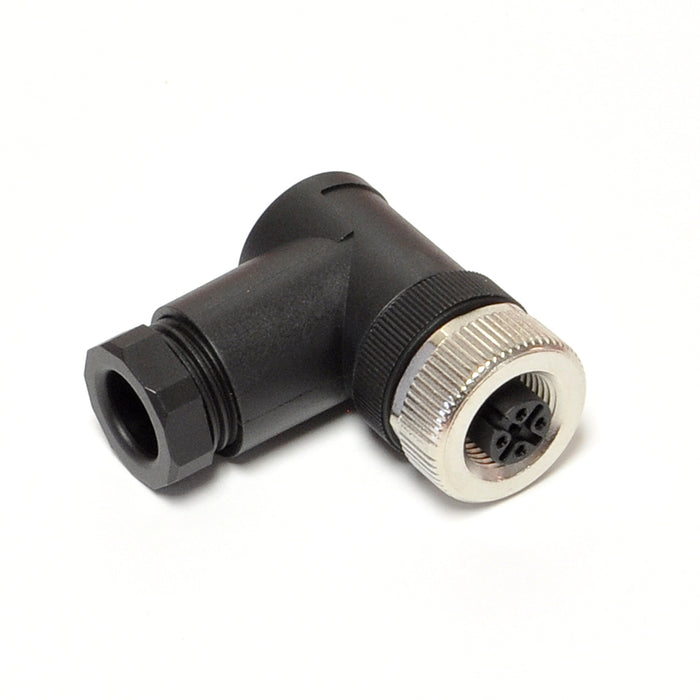

R-FA5KZ/PG9 – HTM Sensors Field Connector M12 A-Coded Female Angled 5 Pin
by HTM
CALL or click FOR QUOTE
The HTM Sensors R-FA5KZ/PG9 is a Field Connector M12 A-Coded Female Angled 5 Pin. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | R-FA5KZ/PG9 |
|---|---|
| Cable type | Field Connector |
| Connector B | M12 A-Coded Female Angled |
| Pins | 5 Pin |
| Terminal type | Screw Terminal |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Wire gauge | 18 AWG Max |
| Contact carrier | PA6 |
| Body | PA6 + Glass Fiber |
| Contact material | CuZn |
| Contact plating | Au |
| Coupling nut | CuZn, Ni Plated |
| Protection rating | IP67 |
| O-ring | NBR |
| Temperature range | -30 C - +85 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
