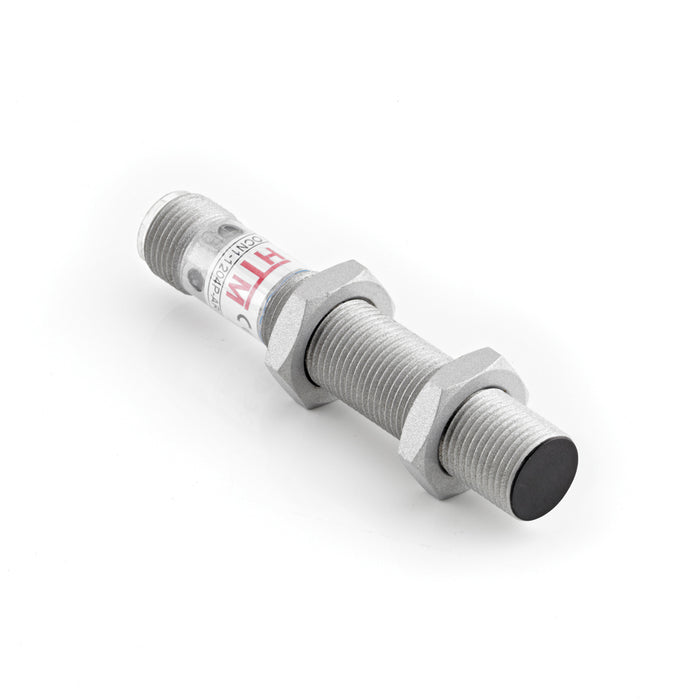

OCN1-1204A-AUL3-PTFE-100C – HTM Sensors M12 Extended Range Inductive Proximity Sensor Shielded 4 mm AC NO 1/2-20UNF Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors OCN1-1204A-AUL3-PTFE-100C is an M12 shielded extended range inductive proximity sensor with a 4 mm sensing range, an AC normally open (NO) output, a 20-250 V AC supply and a 1/2-20UNF connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | OCN1-1204A-AUL3-PTFE-100C |
|---|---|
| Type | Extended Range General Purpose Sensors |
| Shape | Cylindrical |
| Size | M12 |
| Sensing range | 4 mm |
| Mounting style | Shielded |
| Output type | AC |
| Output function | Normally Open |
| Connection | 3 Pin Quick Disconnect |
| Connector | 1/2-20UNF Connector |
| Body length | 70 mm |
| Housing | SpatterGuard coated Brass |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -20 C - +100 C |
| Supply voltage | 20-250 V AC |
| Current consumption | <1.8 mA |
| Leakage current | <1.8 mA |
| Max current | 400 mA |
| Surge current | 5 A (20 ms) |
| Short circuit protected | NO |
| Reverse polarity protected | NO |
| Switching frequency | <25 Hz |
| Response time | 10 ms/10 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | Yes - SpatterGuard Coated |
| Matching cable | U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector) |
| Matching bracket | HRAB-12 (Basic) / QT-12 (Quick Release) |
