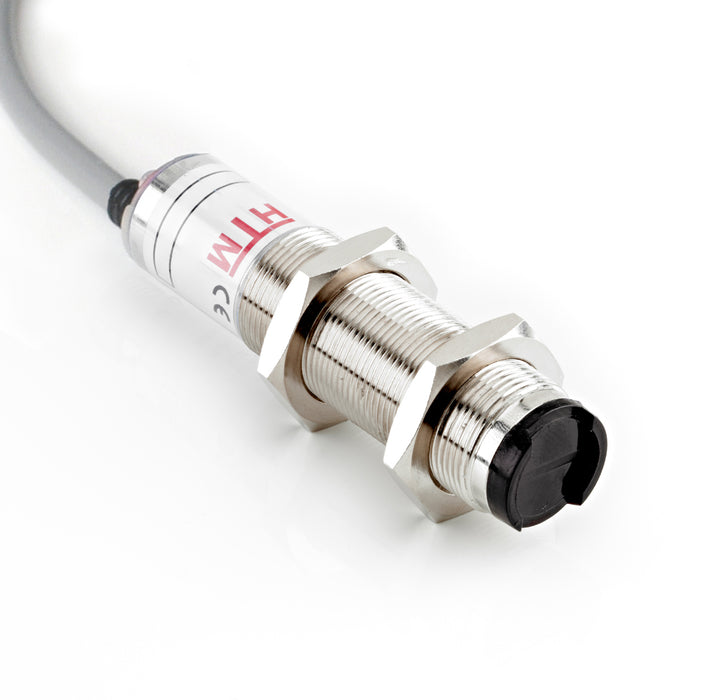

M18B-T015MD-EX9C3L2 – HTM Sensors M18 Prox-Style Photoelectric Sensor Thru-Beam 15 m
by HTM
CALL or click FOR QUOTE
The HTM Sensors M18B-T015MD-EX9C3L2 is an M18 Prox-Style Photoelectric Sensor Thru-Beam 15 m. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | M18B-T015MD-EX9C3L2 |
|---|---|
| Type | M18 Prox-Style Photoelectric |
| Body style | Cylindrical |
| Size | M18 |
| Housing | Chrome Plated Brass |
| Supply voltage | 10-30 V DC |
| Sensing mode | Thru-Beam |
| Sensing range | 15 m |
| Current consumption | <= 30 mA |
| Connection type | 3 wire 2 m cable |
| Operating temperature | -25 C - +55 C |
| Protection rating | IP67 |
| EMC rating | IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3V/m(in30-1000 MHz), ETF>1KV, ESD>4KV(contact) |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.2 (10-55 Hz, 1 mm amplitude in x,y and z directions for 30 min) |
| Short circuit protected | IEC-60947-5-2 Part 7.4.1 (30 g, 11ms in x, y, and z directions for six times |
| Reverse polarity protected | No |
| Light source | 880 nm Infra Red LED |
| Lens material | PMMA |
| Indicator leds | 4 port red LED power indicator |
| IO-Link | No |
| Matching bracket | HRAB-18 |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
