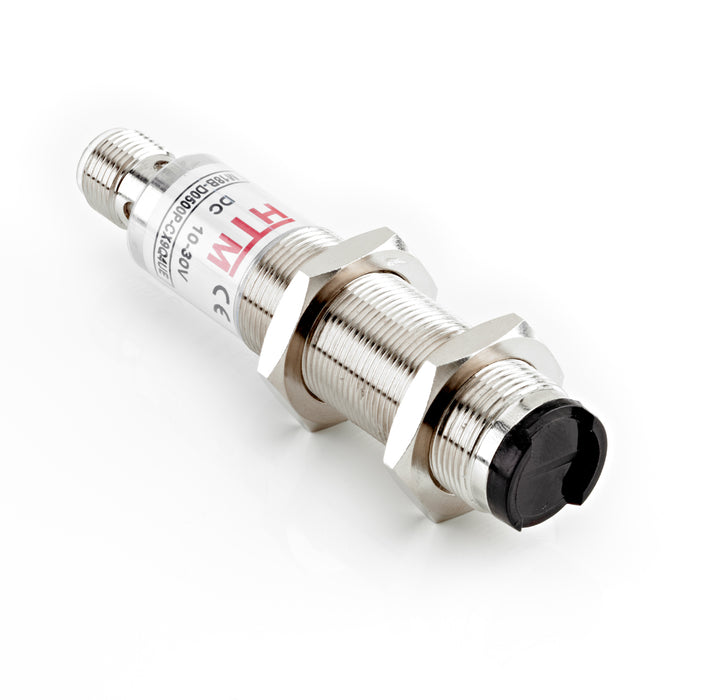

M18B-D0150N-CX9Q4UE – HTM Sensors M18 Prox-Style Photoelectric Sensor Diffused 150 mm NPN LO/DO Selectable
by HTM
CALL or click FOR QUOTE
The HTM Sensors M18B-D0150N-CX9Q4UE is an M18 diffused prox-style photoelectric sensor with a 150 mm sensing range, an NPN light-on/dark-on selectable output and a 10-30 V DC supply. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | M18B-D0150N-CX9Q4UE |
|---|---|
| Type | M18 Prox-Style Photoelectric |
| Body style | Cylindrical |
| Size | M18 |
| Housing | Chrome Plated Brass |
| Supply voltage | 10-30 V DC |
| Sensing mode | Diffused |
| Sensing range | 150 mm |
| Output type | NPN |
| Operation mode | LO/DO Selectable |
| Max current | 200 mA |
| Current consumption | <= 30 mA |
| Overload trip point | 240 mA |
| Response time | 1.5ms |
| Connection type | 4 Pin M12 QD |
| Operating temperature | -25 C - +55 C |
| Protection rating | IP67 |
| EMC rating | IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3V/m(in30-1000 MHz), ETF>1KV, ESD>4KV(contact) |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.2 (10-55 Hz, 1 mm amplitude in x,y and z directions for 30 min) |
| Short circuit protected | IEC-60947-5-2 Part 7.4.1 (30 g, 11ms in x, y, and z directions for six times |
| Reverse polarity protected | No |
| Light source | 880 nm Infra Red LED |
| Lens material | PMMA |
| Indicator leds | 4 port red LED output indicator |
| IO-Link | No |
| Matching bracket | HRAB-18 |
