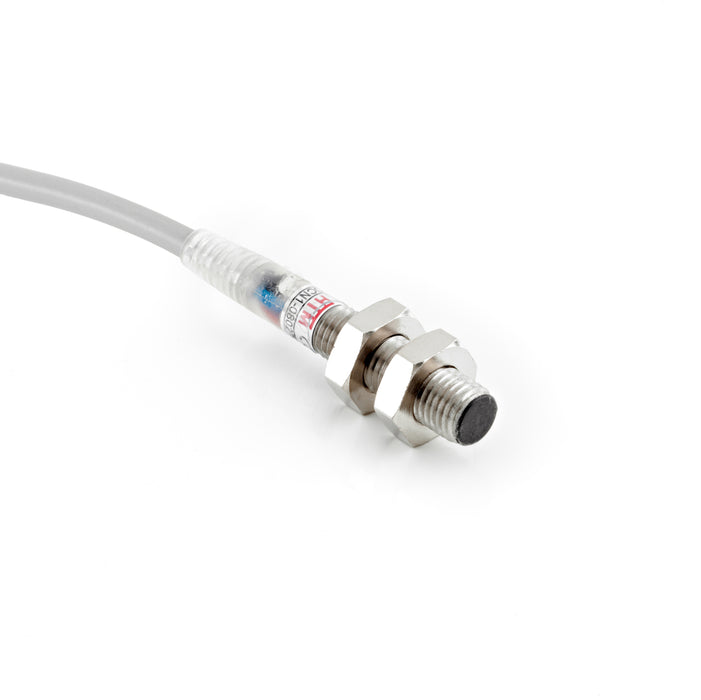

LCU1-0803P-B3S2 – HTM Sensors M8 Long Range Inductive Proximity Sensor Shielded 3 mm PNP NC 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors LCU1-0803P-B3S2 is an M8 shielded long range inductive proximity sensor with a 3 mm sensing range, a PNP normally closed (NC) output, a 10-30 V DC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | LCU1-0803P-B3S2 |
|---|---|
| Type | Long Range Proximity Sensor |
| Shape | Cylindrical |
| Size | M8 |
| Sensing range | 3 mm |
| Mounting style | Shielded |
| Output type | PNP |
| Output function | Normally Closed |
| Connection | Pre-Leaded 3 Wire |
| Connector | 2 m Cable |
| Body length | 30 mm |
| Housing | Stainless Steel SUS303 |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10 mA |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Overload trip point | >220 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 2 KHz |
| Response time | 0.1 ms/0.1 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching bracket | HRAB-08 (Basic) / QT-08 (Quick Release) |
