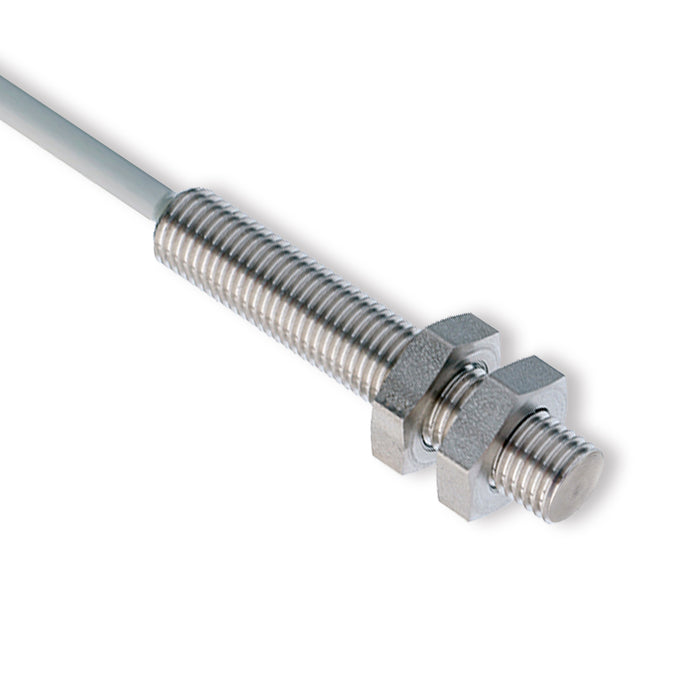

LCS1-0803N-B3U2-AMS – HTM Sensors M8 MetalHead Long Range All-Metal Proximity Sensor Shielded 3 mm NPN NC 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors LCS1-0803N-B3U2-AMS is an M8 shielded MetalHead long range all-metal proximity sensor with a 3 mm sensing range, an NPN normally closed (NC) output, a 10-30 V DC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | LCS1-0803N-B3U2-AMS |
|---|---|
| Body length | 45 mm |
| Connection | Pre-Leaded 3 Wire |
| Connector | 2 m Cable |
| Current consumption | <10 mA |
| Size | M8 |
| EMC rating | IEC 60947-5-2 (7.2.3.1) 1Kv |
| Housing | V2A Stainless Steel |
| Protection rating | IP68 |
| Leakage current | <0.1 mA |
| Max current | <200 mA |
| Mounting style | Shielded |
| Operating temperature | -25 C - +85 C |
| Supply voltage | 10-30 V DC |
| Output function | Normally Closed |
| Output type | NPN |
| Overload trip point | 220mA |
| Reverse polarity protected | Yes |
| Sensing face | V2A Stainless Steel |
| Sensing range | 3 mm |
| Shape | Cylindrical |
| Type | Long Range MetalHead All Metal Sensing |
| Shock resistance | EC 60947-5-2 / 7.9 |
| Short circuit protected | Yes |
| Weld spatter resistant | No |
| Switching frequency | 1200 Hz |
| Weld field immune | No |
| Matching bracket | HRAB-08 (Basic) / QT-08 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
