JZ20-R16 Unitronics Jazz Micro PLC + HMI (6 DI, 2 AI/DI, 2 AI, 6 Relay Out)
by Unitronics
CALL or click FOR QUOTE

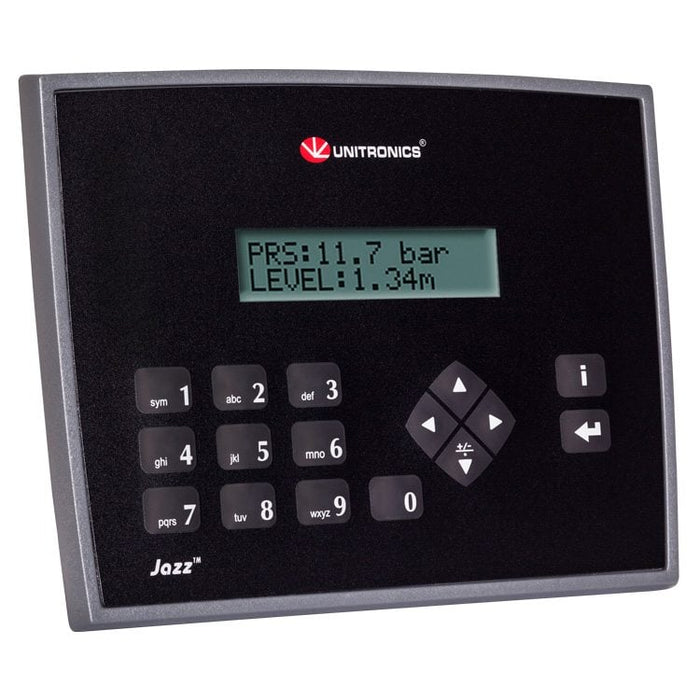

The Unitronics JZ20-R16 is a Jazz series micro PLC with a built-in operator panel, combining the controller, display and keypad in one compact unit. With 6 relay outputs and analog inputs on board, it is well suited to small machines, pump stations, HVAC and other simple control tasks.
Key Specifications
| Part number | JZ20-R16 |
|---|---|
| Type | Micro PLC + HMI (all-in-one) |
| Series | Unitronics Jazz (JZ20) |
| Digital inputs | 6 |
| Analog/digital inputs | 2 (0-10 V) |
| Analog inputs | 2 (0-20 mA) |
| Relay outputs | 6 |
| Power | 24 V DC |
Warranty & Shipping
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Sold and supported by United Industries, a certified Unitronics distributor.
Call for best price & availability: +1-800-724-4209
