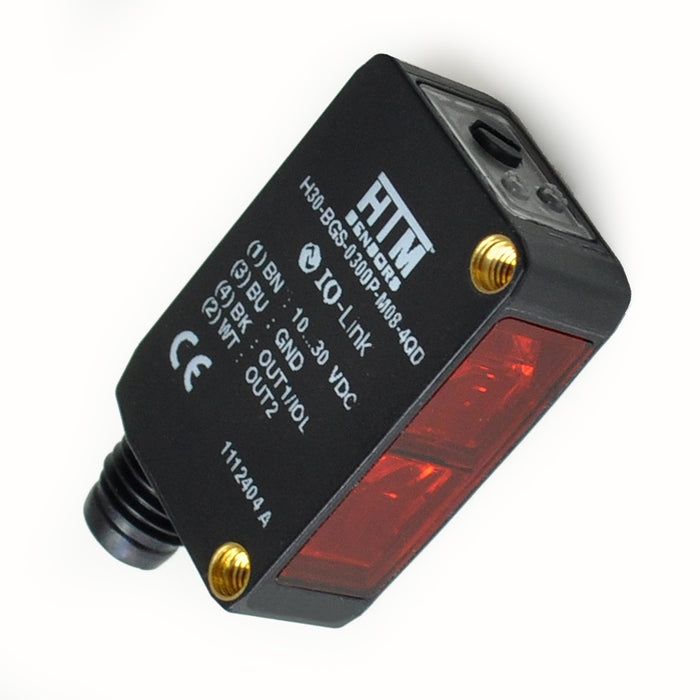

H30-BGS-0300P-M8-4QD – HTM Sensors Rectangular H30 Photoelectric Sensor Background Suppression 300 mm PNP NO/NC Complementary
by HTM
CALL or click FOR QUOTE
The HTM Sensors H30-BGS-0300P-M8-4QD is a rectangular background suppression H30 photoelectric sensor with a 300 mm sensing range, a PNP complementary (NO + NC) output and a 10-30 V DC supply. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | H30-BGS-0300P-M8-4QD |
|---|---|
| Type | H30 Photoelectric Sensor |
| Body style | Rectangular |
| Sensing mode | Background Suppression |
| Sensing range | 300 mm |
| Supply voltage | 10-30 V DC |
| Output type | PNP |
| Operation mode | Complementary |
| Connection type | 4 Pin M8 Male QD |
| Housing | ABS |
| Lens material | PMMA |
| Operating temperature | -25 C - +65 C |
| Switching frequency | <=1 KHz (normal)/<=500 Hz/<=1.5KHz |
| Response time | <=500us(normal)/<=1ms /<=340us |
| Current consumption | <=30 mA |
| Max current | <=100 mA |
| Leakage current | <=0.01 mA |
| Overload trip point | >120 mA |
| Protection rating | IP67 |
| Shock/vibration rating | IEC 60947-5-2 |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Weld field immune | No |
| Weld spatter resistant | No |
| Body length | 20 mm |
| Width | 10 mm |
| Height | 37 mm |
| Indicator leds | Output:Yellow Excess Gain: Green |
| IO-Link | Yes |
| Matching bracket | H30-Bracket-1 |
