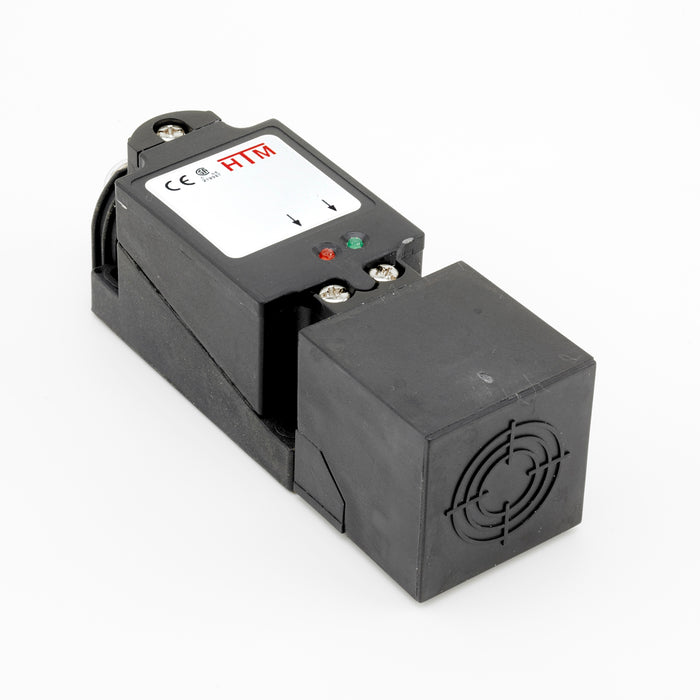

FQP1-4015C-A2U – HTM Sensors Square Inductive Proximity Sensor Shielded 15 mm DC 2-wire NO
by HTM
CALL or click FOR QUOTE
The HTM Sensors FQP1-4015C-A2U is a square shielded inductive proximity sensor with a 15 mm sensing range, a DC 2-wire normally open (NO) output and a 10-60 V DC supply. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FQP1-4015C-A2U |
|---|---|
| Type | Inductive |
| Shape | Square |
| Dimensions | 40 mmx40 mmx118 mm |
| Sensing range | 15 mm |
| Mounting style | Shielded |
| Output type | DC 2-wire |
| Output function | Normally Open |
| Connection | Terminal Chamber |
| Housing | PBT |
| Sensing face | PBT Plastic |
| Protection rating | IP65 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-60 V DC |
| Leakage current | <0.8 mA |
| Max current | 100 mA |
| Overload trip point | >120 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 100hz |
| Response time | 1ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.491 |
| Weld field immune | No |
| Weld spatter resistant | No |
