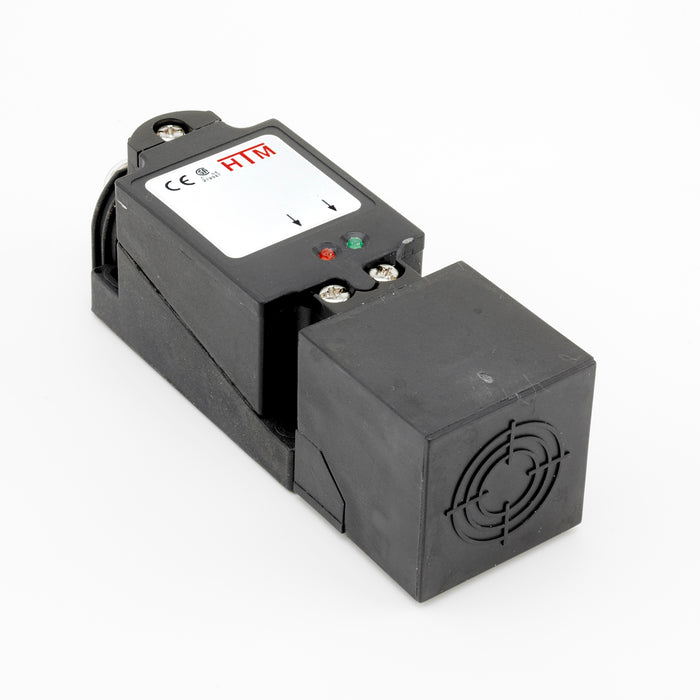

FQP1-4015A-BUL3 – HTM Sensors Square Inductive Proximity Sensor Shielded 15 mm AC 2-wire NC 1/2-20UNF Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors FQP1-4015A-BUL3 is a square shielded inductive proximity sensor with a 15 mm sensing range, an AC 2-wire normally closed (NC) output, a 20-250 V AC supply and a 1/2-20UNF connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FQP1-4015A-BUL3 |
|---|---|
| Type | Inductive |
| Shape | Square |
| Dimensions | 40 mm x 40 mm x 118 mm |
| Sensing range | 15 mm |
| Mounting style | Shielded |
| Output type | AC 2-wire |
| Output function | Normally Closed |
| Connection | 3 Pin Quick Disconnect |
| Connector | 1/2-20UNF Connector |
| Housing | PBT Plastic |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 20-250 V AC |
| Current consumption | <2.5 mA |
| Leakage current | <2.5 mA |
| Max current | 400 mA |
| Surge current | 5 A for 20 ms |
| Short circuit protected | Yes |
| Reverse polarity protected | No |
| Switching frequency | 25Hz |
| Response time | 10 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.482 |
| Weld field immune | No |
| Weld spatter resistant | No |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
