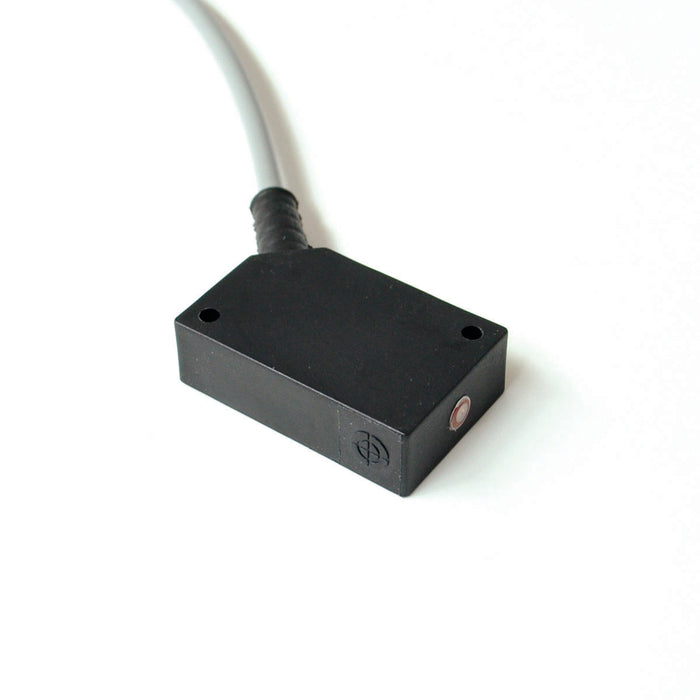

FQP1-4002A-B2L2 – HTM Sensors Square Inductive Proximity Sensor Shielded 2 mm AC 2-wire NC 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors FQP1-4002A-B2L2 is a square shielded inductive proximity sensor with a 2 mm sensing range, an AC 2-wire normally closed (NC) output, a 24-240 V AC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FQP1-4002A-B2L2 |
|---|---|
| Type | Inductive |
| Shape | Square |
| Dimensions | 40 mmx26 mmx12 mm |
| Sensing range | 2 mm |
| Mounting style | Shielded |
| Output type | AC 2-wire |
| Output function | Normally Closed |
| Connection | Pre-Leaded 2 Wire |
| Connector | 2 m Cable |
| Housing | PBT |
| Sensing face | PBT Plastic |
| Protection rating | IP65 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 24-240 V AC |
| Current consumption | <1.8 mA |
| Leakage current | <1.8 mA |
| Max current | 400 mA |
| Surge current | 5A for 20ms |
| Short circuit protected | Yes |
| Reverse polarity protected | #N/A |
| Switching frequency | 25Hz |
| Response time | 10ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.456 |
| Weld field immune | #N/A |
| Weld spatter resistant | #N/A |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
