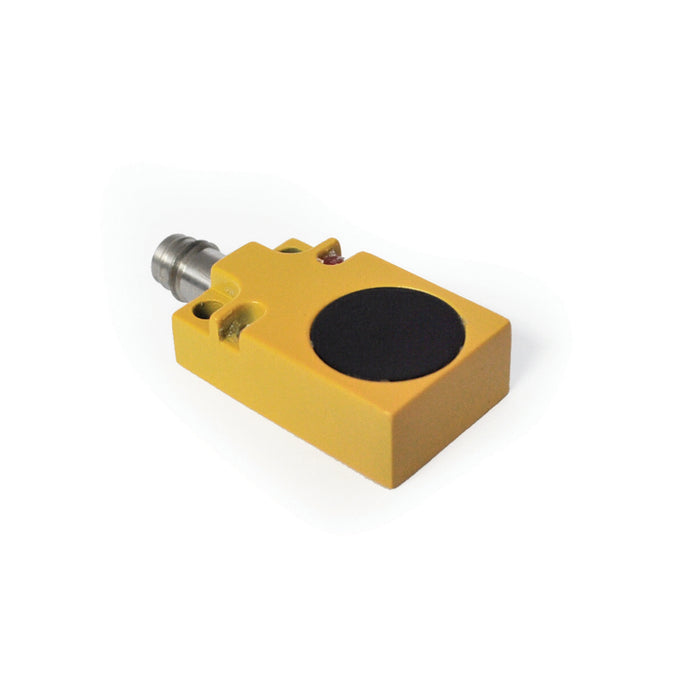

FQM1-Q3205N-BCU3 – HTM Sensors Rectangular Inductive Proximity Sensor Shielded 5 mm NPN NC M8 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors FQM1-Q3205N-BCU3 is a rectangular shielded inductive proximity sensor with a 5 mm sensing range, an NPN normally closed (NC) output, a 10-30 V DC supply and an M8 connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FQM1-Q3205N-BCU3 |
|---|---|
| Type | Inductive |
| Shape | Rectangular |
| Dimensions | 32 mm x 20 mm x 10 mm |
| Sensing range | 5 mm |
| Mounting style | Shielded |
| Output type | NPN |
| Output function | Normally Closed |
| Connection | 3 Pin Quick Disconnect |
| Connector | M8 Connector |
| Housing | Die Cast Zinc |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10 mA |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Overload trip point | >220 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 1Khz |
| Response time | 0.2ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.178 |
| Weld field immune | No |
| Weld spatter resistant | No |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
