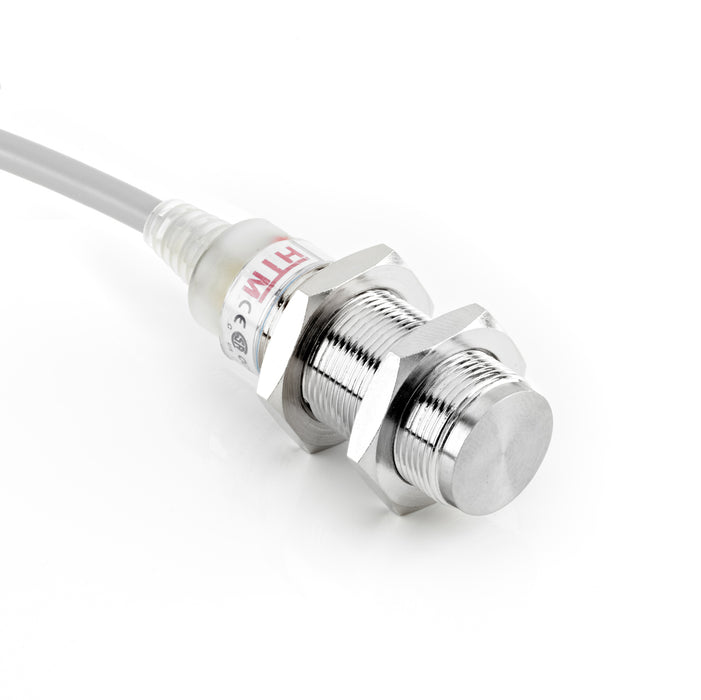

FCS1-1805U-A3S2 – HTM Sensors M18 Metal Face Inductive Proximity Sensor Shielded 5 mm AC/DC NO 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCS1-1805U-A3S2 is an M18 shielded metal face inductive proximity sensor with a 5 mm sensing range, an AC/DC normally open (NO) output, a 20-250 V AC, 50-60HZ; 20-250 V DC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCS1-1805U-A3S2 |
|---|---|
| Type | Inductive Metal Face Proximity Sensor |
| Shape | Cylindrical |
| Size | M18 |
| Sensing range | 5 mm |
| Mounting style | Shielded |
| Output type | AC/DC |
| Output function | Normally Open |
| Connection | Pre-Leaded 3 Wire |
| Connector | 2 m Cable |
| Body length | 35 mm |
| Housing | Stainless Steel SUS303 |
| Sensing face | 1-Piece Stainless Steel |
| Protection rating | IP68 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 20-250 V AC, 50-60HZ; 20-250 V DC |
| Current consumption | <2.5mA |
| Leakage current | <2.5mA |
| Max current | 200 mA |
| Surge current | 2.2 A for 20 ms |
| Short circuit protected | Yes |
| Reverse polarity protected | NO |
| Switching frequency | 25 Hz AC; 40 Hz DC |
| Response time | 10 ms/10 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
