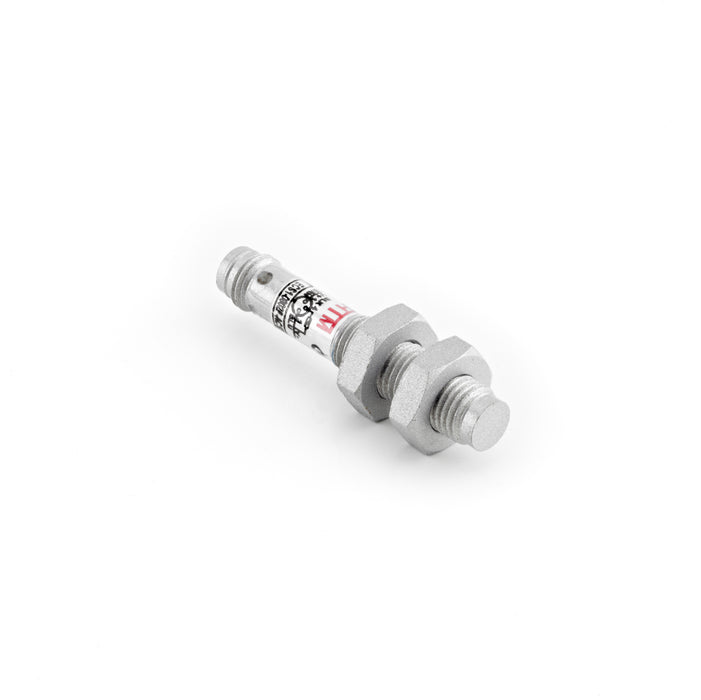

FCS1-0802P-ACS3-PTFE-100C-M – HTM Sensors M8 Metal Face Inductive Proximity Sensor Shielded 2 mm PNP NO M8x1 Quick Connect
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCS1-0802P-ACS3-PTFE-100C-M is an M8 shielded metal face inductive proximity sensor with a 2 mm sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and an M8x1 Quick Connect connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCS1-0802P-ACS3-PTFE-100C-M |
|---|---|
| Body length | 45 mm |
| Connection | 3 Pin Connector |
| Connector | M8x1 Quick Connect |
| Current consumption | 10 mA |
| Size | 8 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Stainless Steel SUS303 |
| Protection rating | IP68 |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Mounting style | Shielded |
| Operating temperature | -20 C - +100 C |
| Supply voltage | 10-30 V DC |
| Output function | Normally Open |
| Output type | PNP |
| Overload trip point | 220 mA |
| Response time | 0.1 ms 0.1 ms |
| Reverse polarity protected | Yes |
| Sensing face | 1-Piece Stainless Steel |
| Sensing range | 2 mm |
| Sensor shape | Cylindrical |
| Sensor type | Inductive Metal Face Proximity Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | Yes SpatterGuard Coated |
| Switching frequency | 500 Hz |
| Weld field immune | No |
| Matching cable | C-FS3TZ-P665 (Straight Connector) / C-FA3TZ-P665 (Angled Connector) |
| Matching bracket | HRAB-08 (Basic) / QT-08 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
