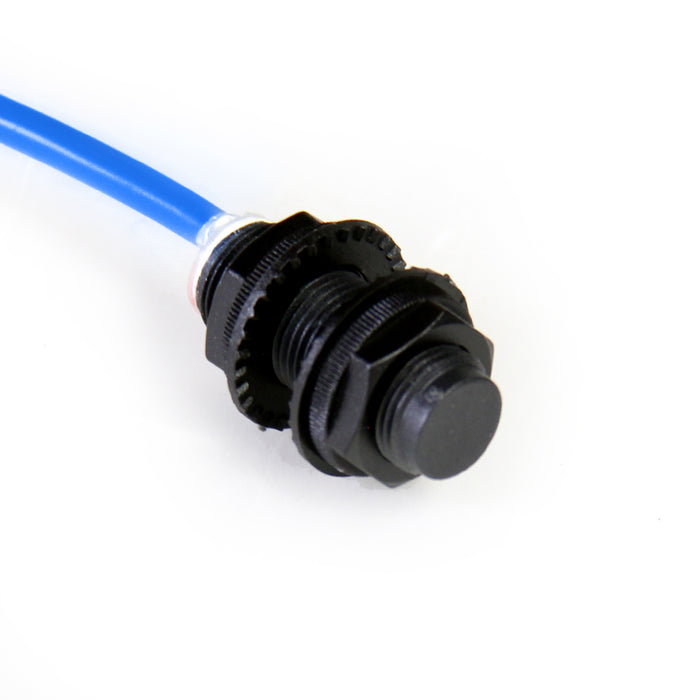

FCP2-1204NU – HTM Sensors M12 Inductive Proximity Sensor Unshielded 4 mm Namur Namur 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCP2-1204NU is an M12 unshielded inductive proximity sensor with a 4 mm sensing range, a Namur Namur output, a 6-12V DC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCP2-1204NU |
|---|---|
| Type | Inductive Proximity Sensor |
| Shape | Cylindrical |
| Size | M12 |
| Sensing range | 4 mm |
| Mounting style | Unshielded |
| Output type | Namur |
| Output function | Namur |
| Connection | Pre-Leaded 2 Wire |
| Connector | 2 m Cable |
| Body length | 25 mm |
| Housing | PBT Plastic |
| Sensing face | PBT Plastic |
| Protection rating | IP68 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 6-12V DC |
| Current consumption | >2.2mA(OFF) |
| Short circuit protected | NO |
| Reverse polarity protected | NO |
| Switching frequency | 500 Hz |
| Response time | 0.2 ms/0.2 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector) |
| Matching bracket | HRAB-12 (Basic) / QT-12 (Quick Release) |
