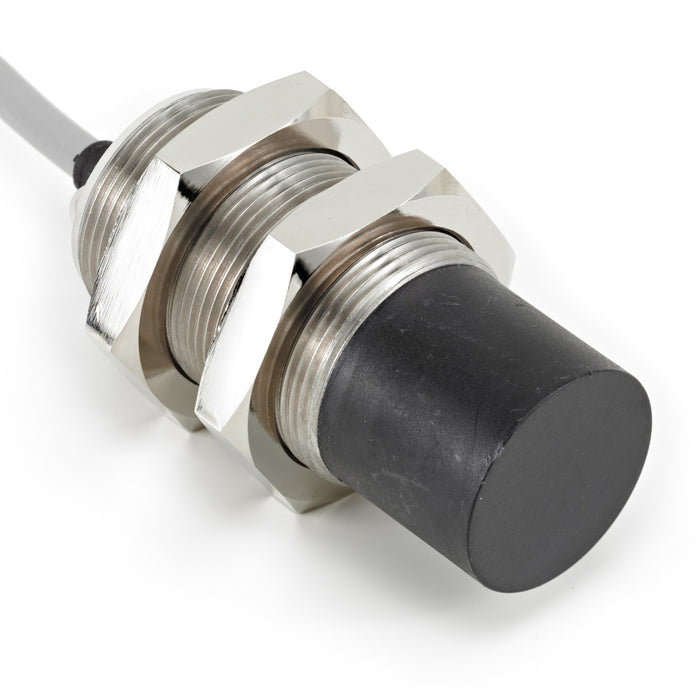

FCM2-3014G-V3U2 – HTM Sensors M30 Inductive Analog Sensor Unshielded 7mm~14 mm Analog Voltage Output
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCM2-3014G-V3U2 is an M30 unshielded inductive analog sensor with a 7mm~14 mm sensing range, an Analog Voltage Output output and a 18-30 V DC supply. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCM2-3014G-V3U2 |
|---|---|
| Body length | 80 mm |
| Connection | Pre Three Wired Cable Connect |
| Connector | Cable |
| Current consumption | 15mA |
| Size | 30 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Chrome Plated Brass |
| Protection rating | IP67 |
| Max current | 0-10 V DC 4.7 k |
| Mounting style | Unshielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 18-30 V DC |
| Output function | Voltage Output |
| Output type | Analog Output |
| Reverse polarity protected | Yes |
| Sensing face | PBT Plastic |
| Sensing range | 7mm~14 mm |
| Sensor shape | Cylindrical |
| Sensor type | Inductive Analog Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | No |
| Switching frequency | 100 Hz |
| Weld field immune | No |
| Matching bracket | HRAB-30 (Basic) / QT-30 (Quick Release) |
