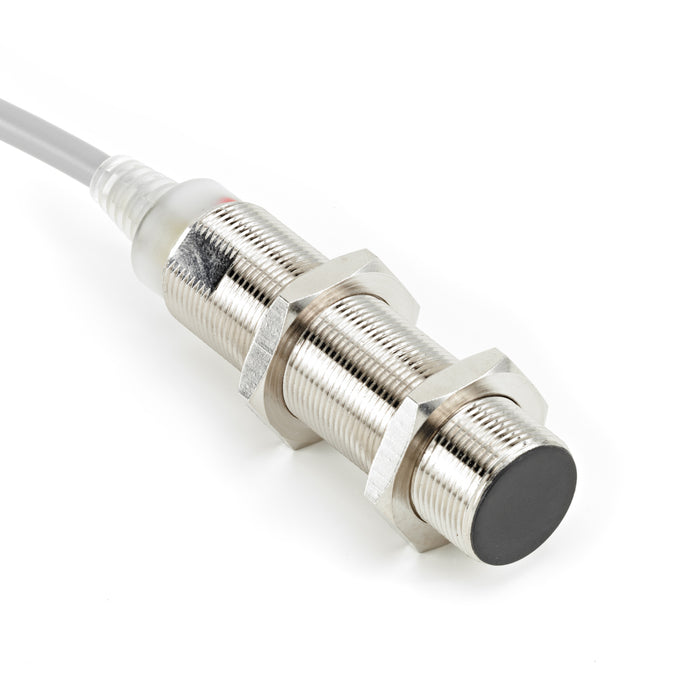

FCM2-1807G-M4U2 – HTM Sensors M18 Inductive Analog Sensor Unshielded 1mm~7mm Analog Current and Voltage Output
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCM2-1807G-M4U2 is an M18 unshielded inductive analog sensor with a 1mm~7mm sensing range, an Analog Current and Voltage Output output and a 18-30 V DC supply. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCM2-1807G-M4U2 |
|---|---|
| Body length | 68 mm |
| Connection | Pre Four Wired Cable Connect |
| Connector | Cable |
| Current consumption | 15mA |
| Size | 18 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Chrome Plated Brass |
| Protection rating | IP67 |
| Max current | 0 20 mA 0 200 0 10 V DC 4.7k |
| Mounting style | Unshielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 18-30 V DC |
| Output function | Current and Voltage Output |
| Output type | Analog Output |
| Reverse polarity protected | Yes |
| Sensing face | PBT Plastic |
| Sensing range | 1mm~7mm |
| Sensor shape | Cylindrical |
| Sensor type | Inductive Analog Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | No |
| Switching frequency | 30 Hz |
| Weld field immune | No |
| Matching cable | R-FS4TZ-V885 (Straight Connector) / R-FA4TZ-V885 (Angled Connector) |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
