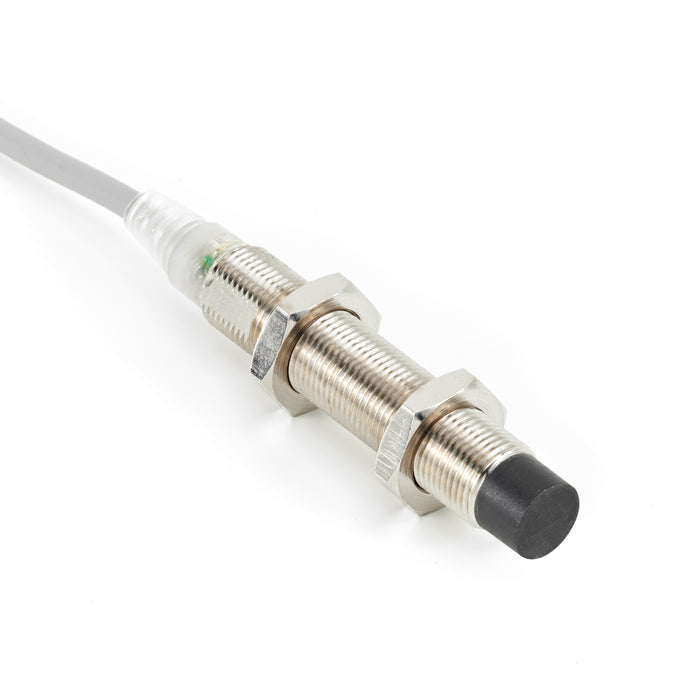

FCM2-1204G-I3U2 – HTM Sensors M12 Inductive Proximity Sensor Unshielded 4 mm Analog Current 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCM2-1204G-I3U2 is an M12 unshielded inductive proximity sensor with a 4 mm sensing range, an Analog Current output, a 18-30 V DC supply and a 2 m cable connection. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCM2-1204G-I3U2 |
|---|---|
| Type | Inductive Proximity Sensor |
| Shape | Cylindrical |
| Size | M12 |
| Sensing range | 4 mm |
| Mounting style | Unshielded |
| Output type | Analog |
| Output function | Current |
| Connection | Pre-Leaded 3 Wire |
| Connector | 2 m Cable |
| Body length | 75 mm |
| Housing | Chrome Plated Brass |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 18-30 V DC |
| Max current | 0-20 mA/200 |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 100 Hz |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching bracket | HRAB-12 (Basic) / QT-12 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
