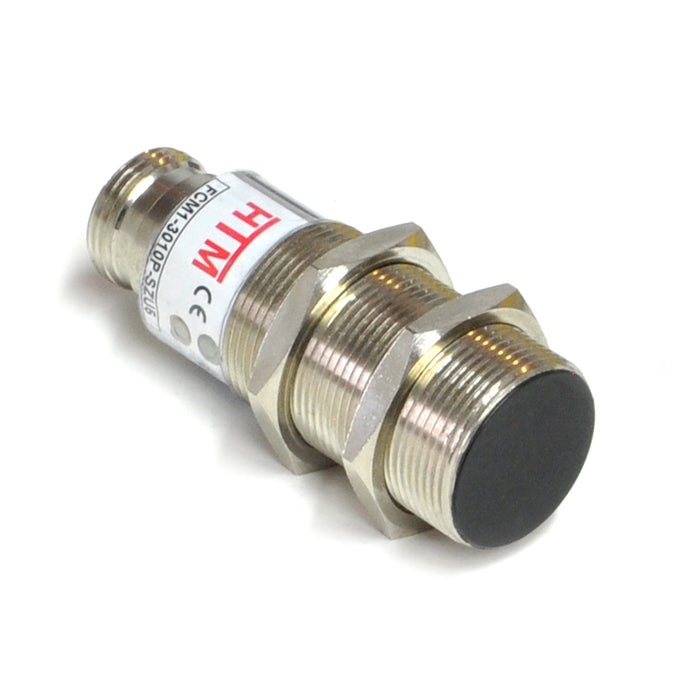

FCM1-3010P-SZU5 – HTM Sensors M30 Inductive Proximity Sensor Shielded 10 mm PNP NO NC Switchable Output Mini Quick Connect
by HTM
CALL or click FOR QUOTE
The HTM Sensors FCM1-3010P-SZU5 is an M30 shielded inductive proximity sensor with a 10 mm sensing range, a PNP NO NC Switchable Output output, a 10-30 V DC supply and a Mini Quick Connect connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | FCM1-3010P-SZU5 |
|---|---|
| Body length | 81 mm |
| Connection | 5 Pin Connector |
| Connector | Mini Quick Connect |
| Current consumption | 10 mA |
| Size | 30 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Chrome Plated Brass |
| Protection rating | IP67 |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Mounting style | Shielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Output function | NO NC Switchable Output |
| Output type | PNP |
| Overload trip point | 220 mA |
| Response time | 0.5 ms 0.5 ms |
| Reverse polarity protected | Yes |
| Sensing face | PBT Plastic |
| Sensing range | 10 mm |
| Sensor shape | Cylindrical |
| Sensor type | Inductive Proximity Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | No |
| Switching frequency | 300 Hz |
| Weld field immune | No |
| Matching bracket | HRAB-30 (Basic) / QT-30 (Quick Release) |
