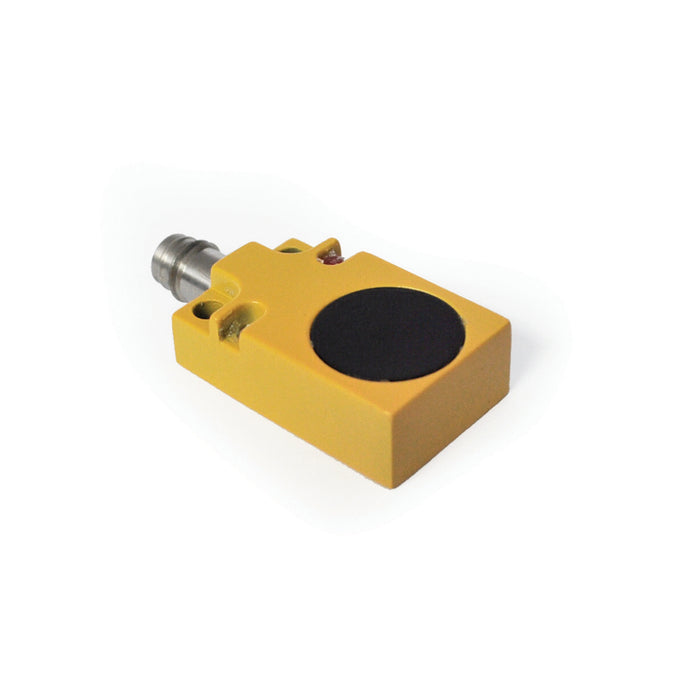

EQM1-Q3208P-ACU3 – HTM Sensors Rectangular Extended Range Inductive Proximity Sensor Shielded 8 mm PNP NO M8 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors EQM1-Q3208P-ACU3 is a rectangular shielded extended range inductive proximity sensor with a 8 mm sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and an M8 connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | EQM1-Q3208P-ACU3 |
|---|---|
| Type | Extended Range Inductive Proximity Sensor |
| Shape | Rectangular |
| Dimensions | 32 mm x 20 mm x 10 mm |
| Sensing range | 8 mm |
| Mounting style | Shielded |
| Output type | PNP |
| Output function | Normally Open |
| Connection | 3 Pin Quick Disconnect |
| Connector | M8 Connector |
| Housing | Chrome Plated Brass |
| Sensing face | PBT Plastic |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10mA |
| Max current | 200mA |
| Overload trip point | 220mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 500Hz |
| Response time | 0.5mS/0.5mS |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.130 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | C-FS3TZ-V075 (Straight Connector) / C-FA3TZ-V075 (Angled Connector) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
