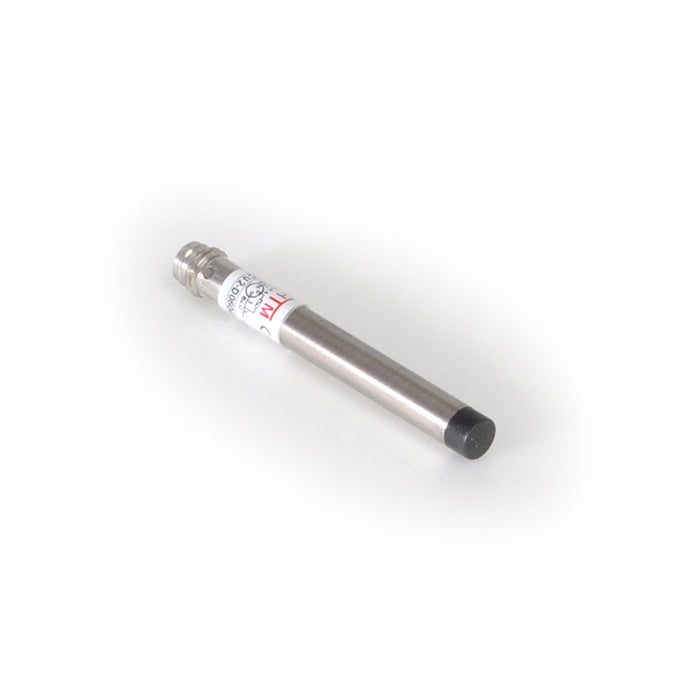

ECU2-D0604P-ACU3 – HTM Sensors 6 mm Smooth Extended Range Inductive Proximity Sensor Unshielded 4 mm PNP NO M8x1 Quick Connect
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECU2-D0604P-ACU3 is a 6 mm Smooth unshielded extended range inductive proximity sensor with a 4 mm sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and an M8x1 Quick Connect connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECU2-D0604P-ACU3 |
|---|---|
| Body length | 60 mm |
| Connection | 3 Pin Connector |
| Connector | M8x1 Quick Connect |
| Current consumption | 10 mA |
| Size | 6 mm Smooth |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Stainless Steel SUS303 |
| Protection rating | IP67 |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Mounting style | Unshielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Output function | Normally Open |
| Output type | PNP |
| Overload trip point | 220 mA |
| Response time | 0.2 ms 0.2 ms |
| Reverse polarity protected | Yes |
| Sensing face | PBT Plastic |
| Sensing range | 4 mm |
| Sensor shape | Cylindrical |
| Sensor type | Extended Range Proximity Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | No |
| Switching frequency | 1 KHz |
| Weld field immune | No |
| Matching cable | C-FS3TZ-V885 (Straight Connector) / C-FA3TZ-V885 (Angled Connector) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
