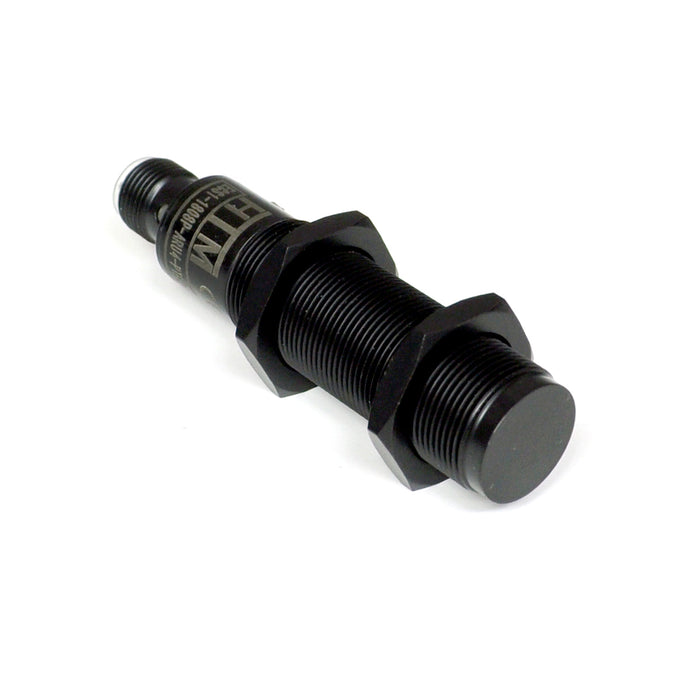

ECS1-1808P-BRU4-PTFE-120C-WFI-TC4 – HTM Sensors M18 Automotive Titan Proximity Sensor Shielded 8 mm PNP NC M12 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECS1-1808P-BRU4-PTFE-120C-WFI-TC4 is an M18 shielded Automotive Titan proximity sensor with a 8 mm sensing range, a PNP normally closed (NC) output, a 10-30 V DC supply and an M12 A-coded connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECS1-1808P-BRU4-PTFE-120C-WFI-TC4 |
|---|---|
| Type | Automotive Titan Sensors |
| Shape | Cylindrical |
| Size | M18 |
| Sensing range | 8 mm |
| Mounting style | Shielded |
| Output type | PNP |
| Output function | Normally Closed |
| Connection | 4 Pin Quick Disconnect |
| Connector | M12 A Coded Connector |
| Body length | 79 mm |
| Housing | Stainless Steel |
| Sensing face | 1-Piece Stainless Steel |
| Protection rating | IP67 |
| Operating temperature | -25 C - +120 C |
| Supply voltage | 10-30 V DC |
| Current consumption | ≤10mA |
| Leakage current | ≤0.01mA |
| Max current | 200mA |
| Overload trip point | >220mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 5 Hz |
| Response time | 200 ms / 200ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | Yes |
| Weld spatter resistant | Yes |
| Matching cable | R-FS4TZ-P665 (Straight Connector) / R-FA4TZ-P665 (Angled Connector) |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
