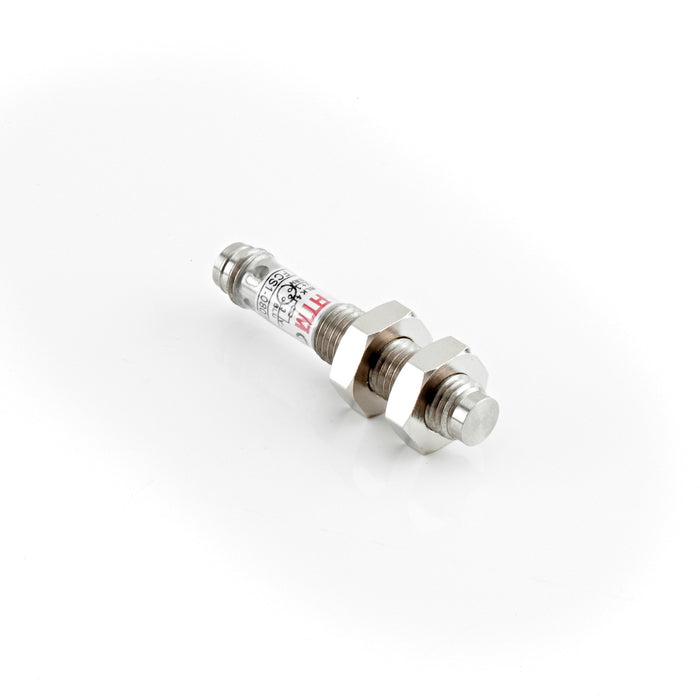

ECS1-0802P-BCS3-100C-TC4 – HTM Sensors M8 TitanProx Titanium Proximity Sensor Shielded 2 mm PNP NC M8 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECS1-0802P-BCS3-100C-TC4 is an M8 shielded TitanProx titanium proximity sensor with a 2 mm sensing range, a PNP normally closed (NC) output, a 10-30 V DC supply and an M8 connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECS1-0802P-BCS3-100C-TC4 |
|---|---|
| Type | TitanProx - 1-piece Titanium |
| Shape | Cylindrical |
| Size | M8 |
| Sensing range | 2 mm |
| Mounting style | Shielded |
| Output type | PNP |
| Output function | Normally Closed |
| Connection | 3 Pin Quick Disconnect |
| Connector | M8 Connector |
| Body length | 45 mm |
| Housing | Titanium |
| Sensing face | 1-Piece Titanium |
| Protection rating | IP67 |
| Operating temperature | -25 C - +100 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10mA |
| Leakage current | <0.01mA |
| Max current | 200mA |
| Overload trip point | >220mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 2 KHz |
| Response time | 0.1 ms/0.1 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | C-FS3TZ-P665 (Straight Connector) / C-FA3TZ-P665 (Angled Connector) |
| Matching bracket | HRAB-08 (Basic) / QT-08 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
