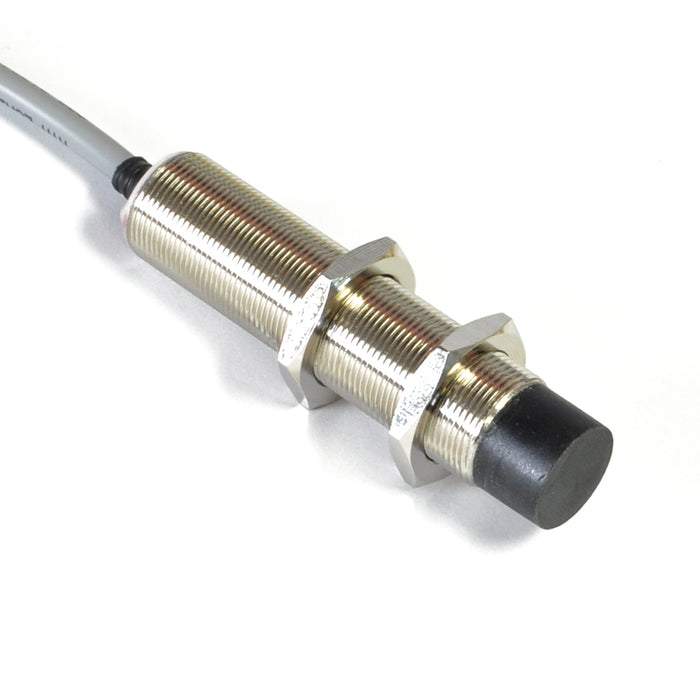

ECM2-1816A-B3L2 – HTM Sensors M18 Extended Range Inductive Proximity Sensor Unshielded 16 mm Range AC NC
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECM2-1816A-B3L2 is an M18 unshielded extended range inductive proximity sensor with a 16 mm range sensing range, an AC normally closed (NC) output and a 20-250 V AC supply. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECM2-1816A-B3L2 |
|---|---|
| Body length | 80 mm |
| Connection | Pre Three Wired Cable Connect |
| Connector | Cable |
| Current consumption | <1.8 mA |
| Size | 18 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Chrome Plated Brass |
| Protection rating | IP67 |
| Leakage current | <1.8 mA |
| Max current | 400 mA |
| Mounting style | Unshielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 20-250 V AC |
| Output function | Normally Closed |
| Output type | AC Output |
| Response time | 10 ms 10 ms |
| Reverse polarity protected | No |
| Sensing face | PBT Plastic |
| Sensing range | 16 mm range |
| Sensor shape | Cylindrical |
| Sensor type | Extended Range Proximity Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | No |
| Spatterguard weld coating | No |
| Surge current | 5 A 20 ms |
| Switching frequency | <25 Hz |
| Weld field immune | No |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
