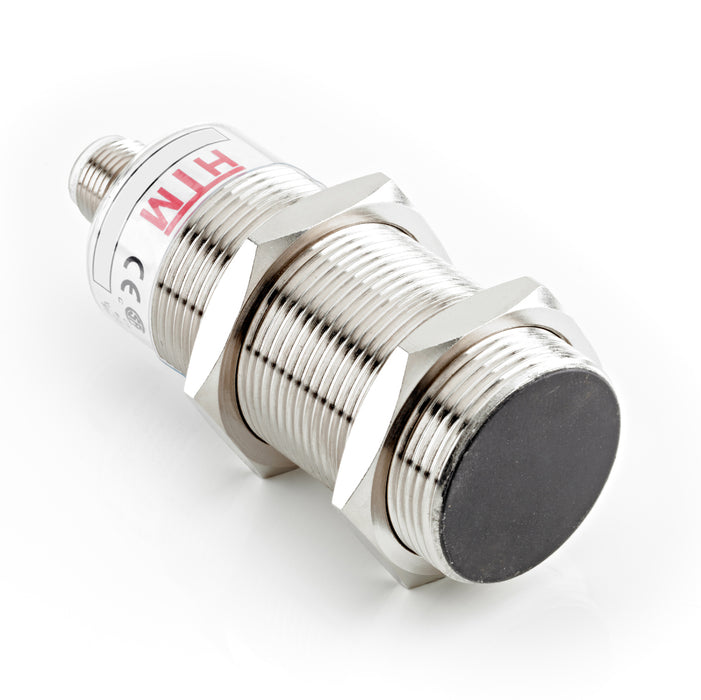

ECM1-3016P-ARU4 – HTM Sensors M30 Extended Range Inductive Proximity Sensor Shielded 16 mm Range PNP NO M12x1 Quick Connect
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECM1-3016P-ARU4 is an M30 shielded extended range inductive proximity sensor with a 16 mm range sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and an M12x1 Quick Connect connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECM1-3016P-ARU4 |
|---|---|
| Body length | 78 mm |
| Connection | 4 Pin Connector |
| Connector | M12x1 Quick Connect |
| Current consumption | 10 mA |
| Size | 30 mm Threaded |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Housing | Chrome Plated Brass |
| Protection rating | IP67 |
| Leakage current | <0.01 mA |
| Max current | 200 mA |
| Mounting style | Shielded |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Output function | Normally Open |
| Output type | PNP |
| Overload trip point | 220 mA |
| Response time | 0.5 ms 0.5 ms |
| Reverse polarity protected | Yes |
| Sensing face | PBT Plastic |
| Sensing range | 16 mm range |
| Sensor shape | Cylindrical |
| Sensor type | Extended Range Proximity Sensor |
| Shock rating | IEC 60497-5-2, Part 7.4.1&7.4.2 |
| Short circuit protected | Yes |
| SpatterGuard weld coating | No |
| Switching frequency | 500 Hz |
| Weld field immune | No |
| Matching cable | R-FS4TZ-V075 (Straight Connector) / R-FA4TZ-V075 (Angled Connector) |
| Matching bracket | HRAB-30 (Basic) / QT-30 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
