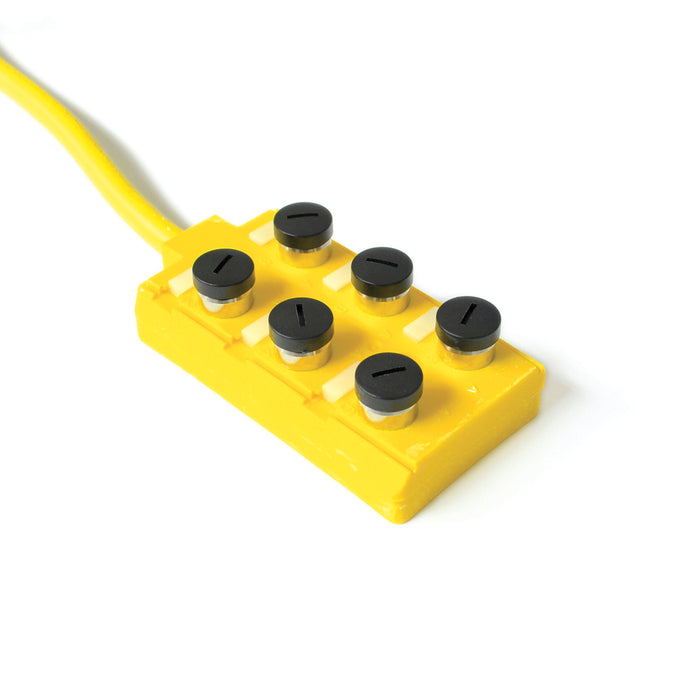

DSTR6-5/4NA-3305 – HTM Sensors Distribution Block Single Occupancy 6x M12 NPN Pre-wired 5 m PUR
by HTM
CALL or click FOR QUOTE
The HTM Sensors DSTR6-5/4NA-3305 is a Distribution Block Single Occupancy 6x M12 NPN Pre-wired 5 m PUR. Distribution blocks gather multiple sensor and actuator connections into a single home-run cable, simplifying machine wiring.
Key Specifications
| Part number | DSTR6-5/4NA-3305 |
|---|---|
| Type | Single Occupancy |
| Number of ports | 6 |
| Port size | M12 A Coded |
| Port location | Top |
| LED circuit | NPN |
| Home run connection | Pre-wired |
| Home run location | Side |
| Length | 5 m |
| Jacket type | PUR |
| Rated voltage | 10-30V DC |
| Rated current | 4 Amp Max per Port / 12 Amps Max per Block |
| Protection rating | IP67 |
| Operating temperature | -15 C to + 90 C |
| Vibration rating | IEC-68-2-6 |
| Shock rating | IEC-68-27 |
| Housing | Nylon 6/6 |
| O-ring | Viton |
| Contact carrier | PUR |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
