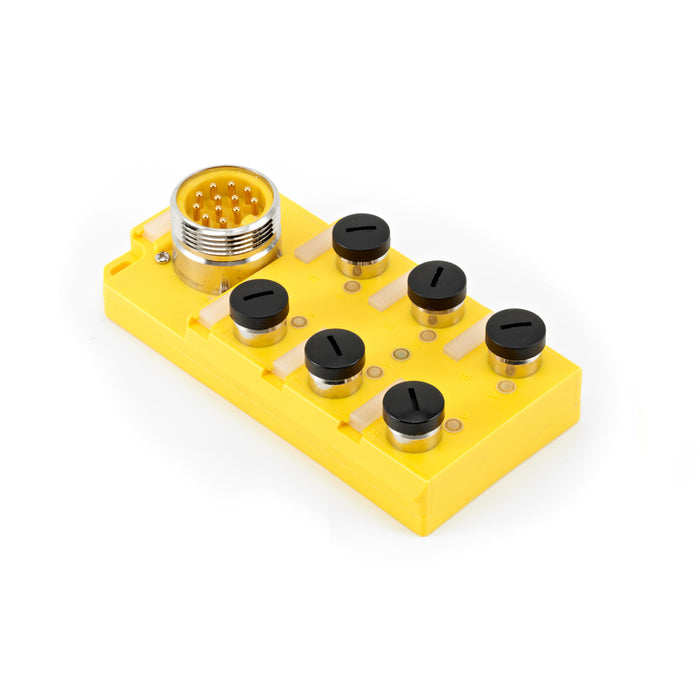

DLTR6-5/4UZ-TZ12 – HTM Sensors Distribution Block Single Occupancy 6x M12 Mini 12 Pin 60V AC / 75V DC
by HTM
CALL or click FOR QUOTE
The HTM Sensors DLTR6-5/4UZ-TZ12 is a Distribution Block Single Occupancy 6x M12 Mini 12 Pin 60V AC / 75V DC. Distribution blocks gather multiple sensor and actuator connections into a single home-run cable, simplifying machine wiring.
Key Specifications
| Part number | DLTR6-5/4UZ-TZ12 |
|---|---|
| Type | Single Occupancy |
| Number of ports | 6 |
| Port size | M12 A Coded |
| Port location | Top |
| Home run connection | Mini 12 Pin |
| Home run location | Top |
| Rated voltage | 60V AC / 75V DC |
| Rated current | 4 Amp Max per Port / 12 Amps Max per Block |
| Protection rating | IP65 |
| Operating temperature | -15 C to + 90 C |
| Vibration rating | IEC-68-2-6 |
| Shock rating | IEC-68-27 |
| Housing | Nylon 6/6 |
| O-ring | Viton |
| Contact carrier | PUR |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
