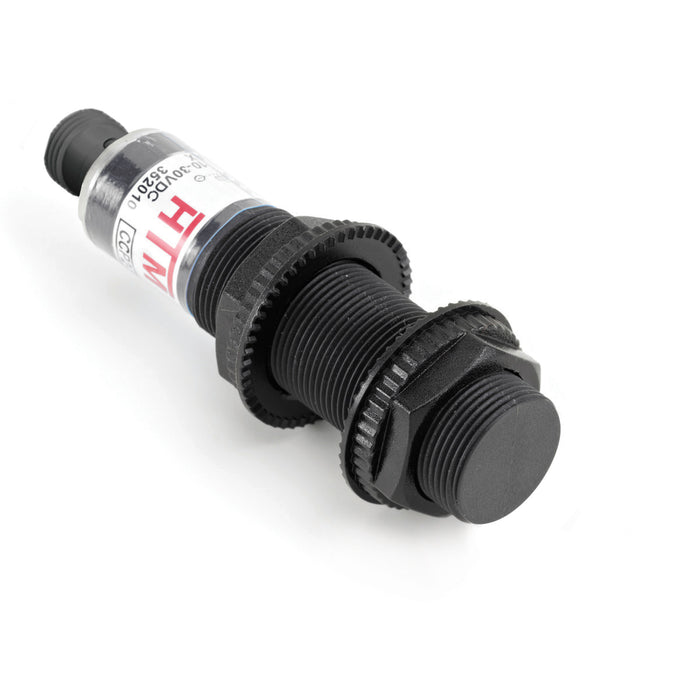

CCP1-1808U-AUL3 – HTM Sensors M18 Capacitive Proximity Sensor Shielded 2-8 mm AC/DC NO 1/2-20UNF Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors CCP1-1808U-AUL3 is an M18 shielded capacitive proximity sensor with a 2-8 mm sensing range, an AC/DC normally open (NO) output, a 20-240 V AC/DC supply and a 1/2-20UNF connector. Capacitive sensors detect metal and non-metal targets alike, making them a good fit for level detection and for sensing plastic, glass, liquids, wood and other non-metallic materials.
Key Specifications
| Part number | CCP1-1808U-AUL3 |
|---|---|
| Type | Capacitive Sensor |
| Shape | Cylindrical |
| Size | M18 |
| Sensing range | 2-8 mm |
| Mounting style | Shielded |
| Output type | AC/DC |
| Output function | Normally Open |
| Connection | 3 Pin Quick Disconnect |
| Connector | 1/2-20UNF Connector |
| Body length | 80 mm |
| Housing | PBT |
| Sensing face | PBT |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 20-240 V AC/DC |
| Current consumption | <2.5mA |
| Leakage current | <2.5mA |
| Max current | 200 mA |
| Surge current | 2.2 A for 20 ms |
| Short circuit protected | No |
| Reverse polarity protected | No |
| Switching frequency | >25 Hz AC ; <40 Hz DC |
| Response time | 10 ms |
| EMC rating | RFI>3V/m,EFT>1KV,ESD>4KV |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.1/IEC 60947-5-2, Part 7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | U-FS3TAV315 (Straight Connector) / U-FA3TAV315 (Angled Connector) |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
