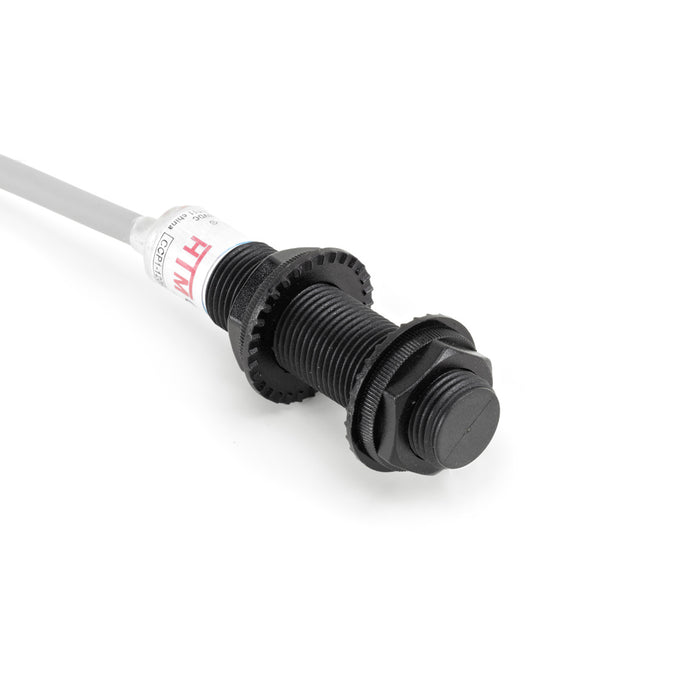

CCP1-1204P-A3U2 – HTM Sensors M12 Capacitive Proximity Sensor Shielded 1-4 mm PNP NO 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors CCP1-1204P-A3U2 is an M12 shielded capacitive proximity sensor with a 1-4 mm sensing range, a PNP normally open (NO) output, a 10-30 V DC supply and a 2 m cable connection. Capacitive sensors detect metal and non-metal targets alike, making them a good fit for level detection and for sensing plastic, glass, liquids, wood and other non-metallic materials.
Key Specifications
| Part number | CCP1-1204P-A3U2 |
|---|---|
| Type | Capacitive Sensor |
| Shape | Cylindrical |
| Size | M12 |
| Sensing range | 1-4 mm |
| Mounting style | Shielded |
| Output type | PNP |
| Output function | Normally Open |
| Connection | Pre-Leaded 3 Wire |
| Connector | 2 m Cable |
| Body length | 59 mm |
| Housing | PBT |
| Sensing face | PBT |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10mA |
| Leakage current | <0.01mA |
| Max current | 200 mA |
| Overload trip point | >20 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 100 Hz |
| Response time | 1.5 ms |
| EMC rating | RFI>3V/m,EFT>1KV,ESD>4KV |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.1/IEC 60947-5-2, Part 7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching bracket | HRAB-12 (Basic) / QT-12 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
