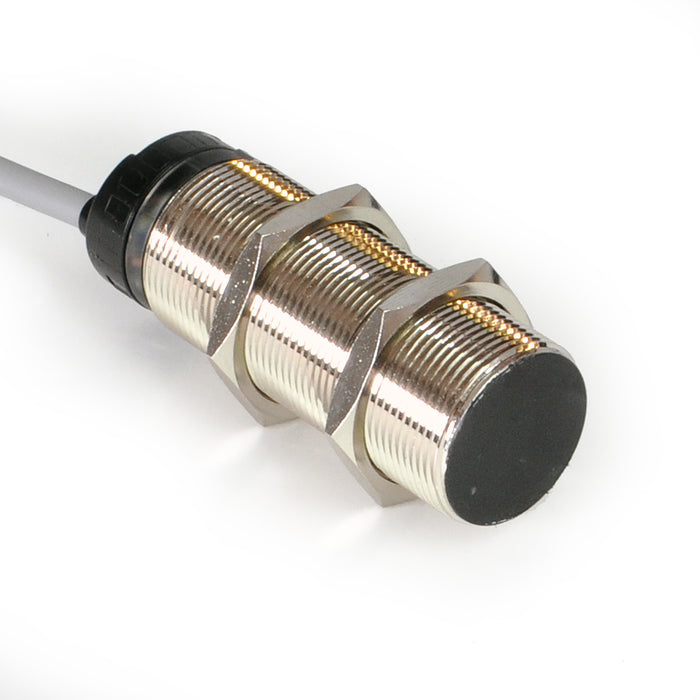

CCM1-3020N-S4U2 – HTM Sensors M30 Capacitive Proximity Sensor Shielded 2-20 mm NPN NO/NC Complementary 2 m Cable
by HTM
CALL or click FOR QUOTE
The HTM Sensors CCM1-3020N-S4U2 is an M30 shielded capacitive proximity sensor with a 2-20 mm sensing range, an NPN complementary (NO + NC) output, a 10-30 V DC supply and a 2 m cable connection. Capacitive sensors detect metal and non-metal targets alike, making them a good fit for level detection and for sensing plastic, glass, liquids, wood and other non-metallic materials.
Key Specifications
| Part number | CCM1-3020N-S4U2 |
|---|---|
| Type | Capacitive Sensor |
| Shape | Cylindrical |
| Size | M30 |
| Sensing range | 2-20 mm |
| Mounting style | Shielded |
| Output type | NPN |
| Output function | Complementary |
| Connection | Pre-Leaded 4 Wire |
| Connector | 2 m Cable |
| Body length | 80 mm |
| Housing | Chrome Plated Brass |
| Sensing face | PBT |
| Protection rating | IP67 |
| Operating temperature | -25 C - +70 C |
| Supply voltage | 10-30 V DC |
| Current consumption | <10mA |
| Leakage current | <0.01mA |
| Max current | 300 mA |
| Overload trip point | >50 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 100 Hz |
| Response time | 1.5 ms |
| EMC rating | RFI>3V/m,EFT>1KV,ESD>4KV |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.1/IEC 60947-5-2, Part 7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching bracket | HRAB-30 (Basic) / QT-30 (Quick Release) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
