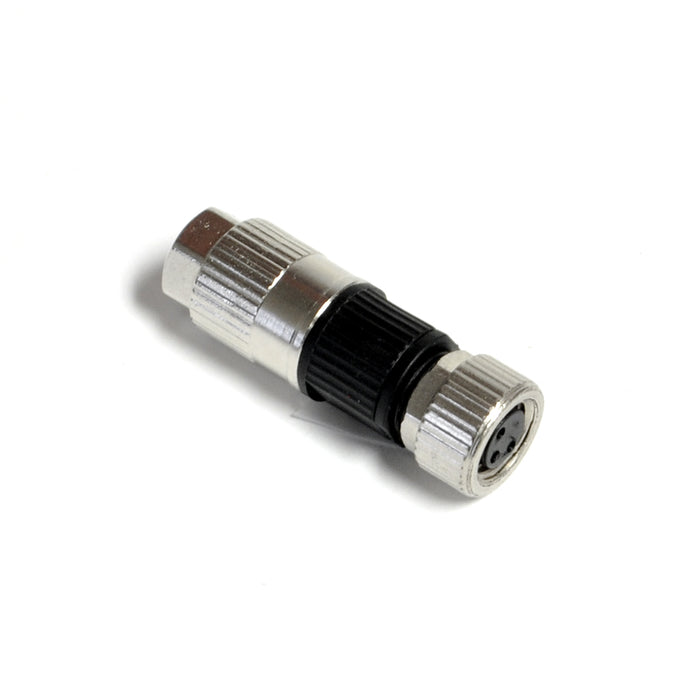

C-FS3KZ/IDC – HTM Sensors Field Connector M8 A-Coded Female Straight 3 Pin
by HTM
CALL or click FOR QUOTE
The HTM Sensors C-FS3KZ/IDC is a Field Connector M8 A-Coded Female Straight 3 Pin. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | C-FS3KZ/IDC |
|---|---|
| Cable type | Field Connector |
| Connector B | M8 A-Coded Female Straight |
| Pins | 3 Pin |
| Terminal type | IDC |
| Rated current | 4 A |
| Rated voltage | 32 V |
| Wire gauge | 22-26 AWG |
| Contact carrier | PA |
| Body | PA + ZA |
| Contact material | CuZn |
| Contact plating | Au |
| Coupling nut | CuZn, Ni Plated |
| Protection class | IP 67 |
| O-ring | NBR |
| Temperature range | -25 C - +85 C |
