Allen-Bradley 2711P-T15C22D9PK PanelView Plus 7 Performance 15" Color Touchscreen HMI Terminal (Conformal Coated)

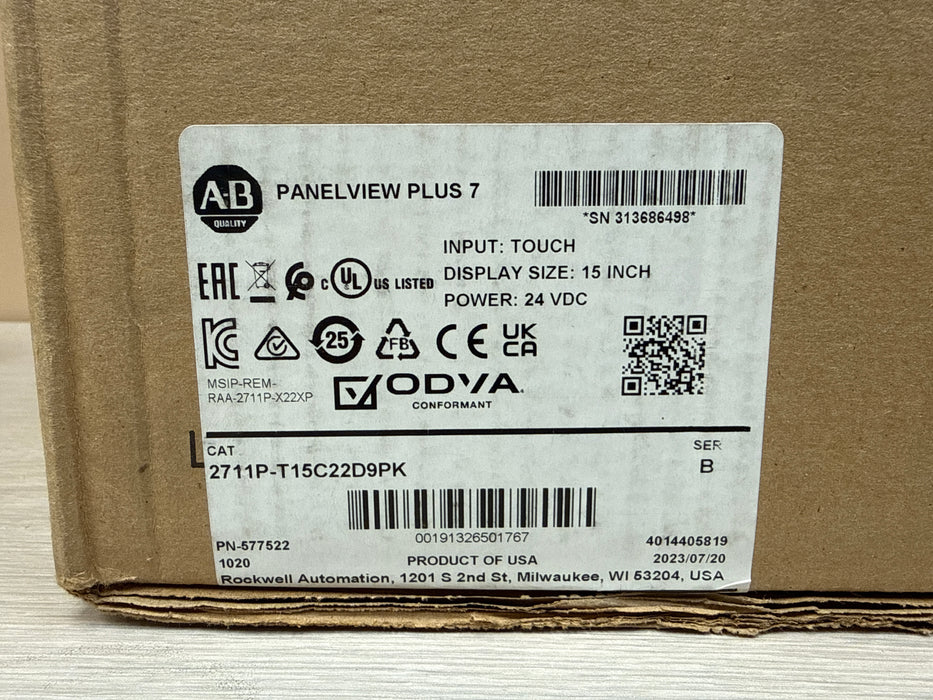

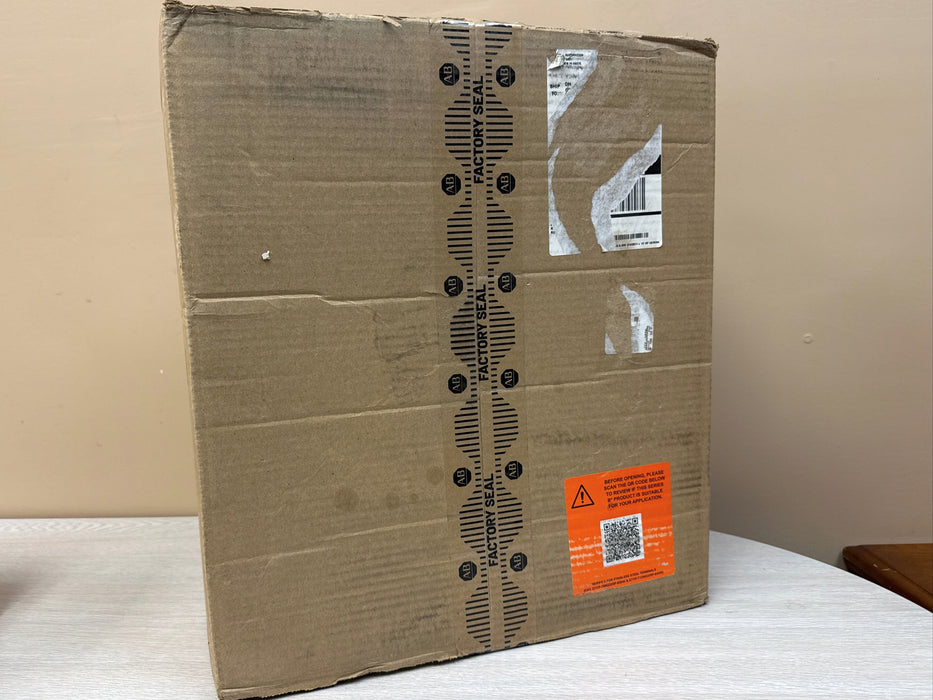

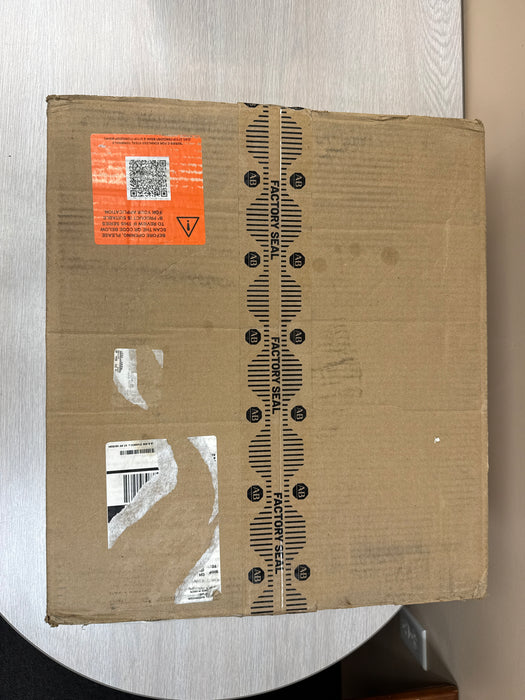

Condition: NEW IN BOX

The Allen-Bradley 2711P-T15C22D9PK is a high-performance PanelView™ Plus 7 Graphic Terminal engineered for demanding industrial applications. This 15-inch color TFT touchscreen operator interface delivers reliable monitoring and control of ControlLogix® and CompactLogix™ systems via EtherNet/IP with built-in Device Level Ring (DLR) support.

Key Features

• 15-inch wide TFT Color display (XGA 1024 × 768 resolution, 300 nits brightness)

• Analog resistive touchscreen (1 million actuation rating, gloved-hand compatible) – no keypad

• Dual 10/100Base-T Ethernet ports with full DLR, linear, and star network support \

• Conformal coating (K suffix) for protection in corrosive atmospheres (G3 severity)

• 24V DC power input (18–30V DC, ~50W max) • FactoryTalk® View Machine Edition runtime pre-loaded

• Windows 10 IoT Core (Series B) with VNC server, web browser, PDF viewer, and secure FTP

• NEMA 4X / IP66 rated enclosure

• Operating temperature: 0…55 °C (32…131 °F)

Technical Specifications • Display size: 15 in. diagonal (304 × 228 mm viewing area)

• Processor: ARM Cortex-A9 dual-core, 1 GHz

• Memory: 512 MB RAM / 80 MB user nonvolatile storage (expandable via SD card)

• Ports: 2× Ethernet DLR, USB host/device, SD card slot

• Certifications: c-UL-us (Class I Div 2), CE, RCM, RoHS, UKCA, and more

• Dimensions (H×W×D): 318 × 381 × 69.6 mm (12.52 × 15.00 × 2.74 in.) • Cutout: 290 × 353 mm • Weight: approx. 3.69 kg (8.14 lb)

Perfect for OEMs, integrators, and maintenance teams needing a rugged, conformal-coated 15-inch PanelView Plus 7 HMI. Compatible with FactoryTalk View Studio ME v8.0+ and supports remote access via VNC and FactoryTalk ViewPoint.

Why Choose This Model? The conformal coating and DLR Ethernet make the 2711P-T15C22D9PK ideal for chemical processing, food & beverage, oil & gas, and other harsh industrial environments where standard HMIs fail.
