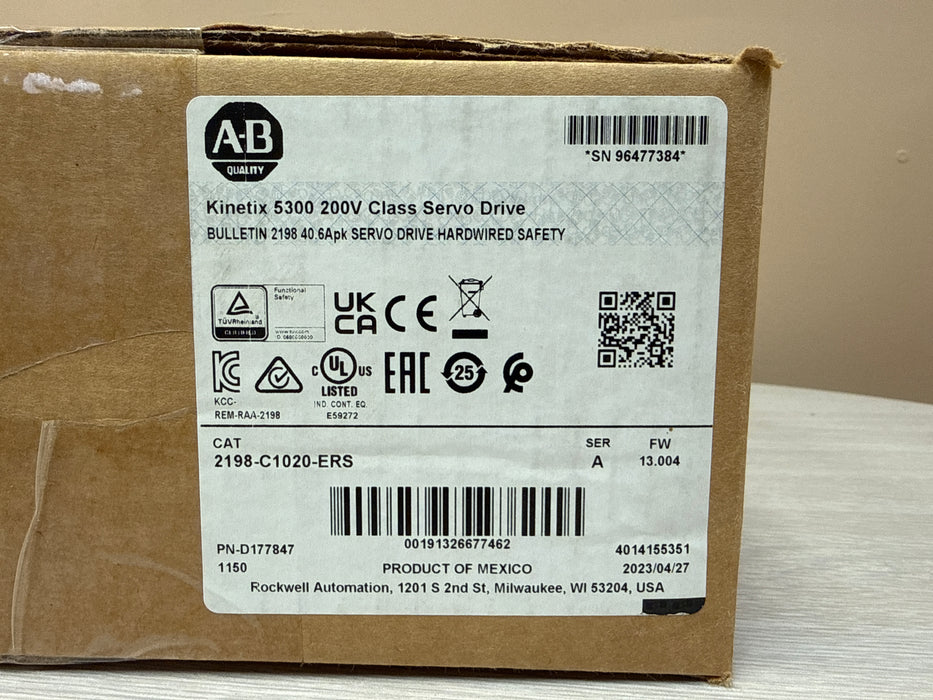

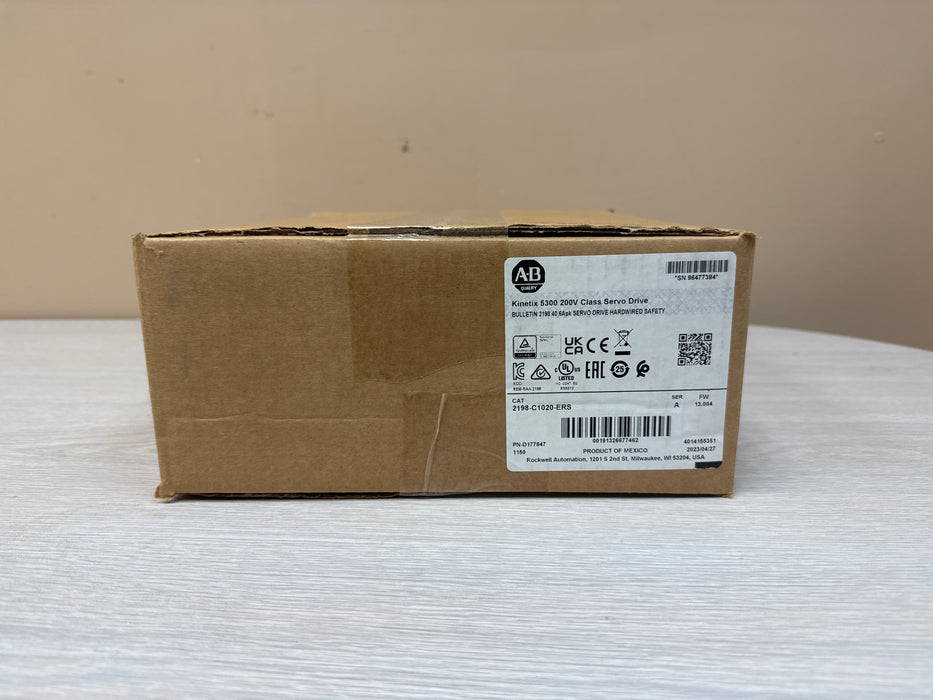

Allen-Bradley 2198-C1020-ERS Kinetix® 5300 Single-axis EtherNet/IP Servo Drive – 2.02 kW, 200V Class, Frame 2

Condition: New Surplus

The 2198-C1020-ERS is a compact, high-performance servo drive from Rockwell Automation's Kinetix 5300 series, providing integrated motion over EtherNet/IP for demanding automation tasks like packaging, material handling, and machine tooling.

Key Features

• 200V-class input (supports single-phase 110V or three-phase 230V)

• Continuous output: 2.02 kW / 12.2 A rms (peak 40.6 A)

• Hardwired Safe Torque-Off (STO) for safety compliance

• EtherNet/IP network with dual ports for DLR (Device Level Ring) support

• Compatible with Kinetix TLP, MPF, VPC, and other servo motors

• Zero-stack mounting for space-saving multi-drive systems

• Studio 5000 Logix Designer integration with ControlLogix/CompactLogix

• Operating temperature: 0…50°C (derate above)

• Certifications: cULus, CE, RCM, KC, EAC, TÜV

Technical Specifications

• Input: 85–132V AC (1-ph) or 170–253V AC (1/3-ph)

• Output: 0–253V AC, up to 12.2 A continuous • Frame: 2 (compact design)

• Dimensions (H×W×D): Approx. 265 × 55 × 225 mm (10.43 × 2.16 × 8.86 in.)

• Mounting: Panel/subpanel, M4 screws

• Weight: Approx. 2.5 kg

• Perfect for: OEMs, integrators needing reliable, cost-effective servo control in mid-range applications

New surplus
