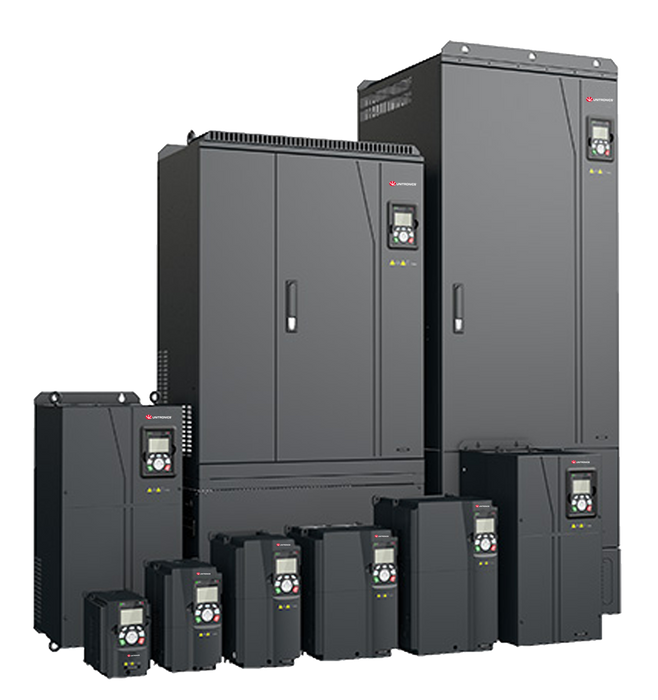

UMI-5000EU-B7 Unitronics UMI-B7 VFD – 670HP (500kW), 860A, 380-480V 3-Phase, STO
by Unitronics
CALL or click FOR QUOTE
The Unitronics UMI-5000EU-B7 is a UMI-B7 series variable frequency drive rated 500 kW (670 HP) and 860 A for a 380-480 V three-phase supply. It runs both induction and permanent magnet motors, with closed-loop position, speed and torque control, and Safe Torque Off built in. It suits pumps, fans, conveyors and other large machine and process loads.
What It Does Well
- Sensorless vector, closed-loop vector and SVPWM control
- Overload: 150% for 60 s, 180% for 10 s, 200% for 1 s
- Integrated STO (SIL2), functional safety certified
- Built-in Modbus RTU over RS-485; up to 3 option cards for CANopen, EtherCAT, EtherNet/IP or Modbus TCP
- Removable LCD keypad with a 16-line text and graphics screen and wizard mode for setup
Key Specifications
| Part number | UMI-5000EU-B7 |
|---|---|
| Series | Unitronics UMI-B7 |
| Rating | 500 kW / 670 HP, 860 A output |
| Input | 380-480 V AC, three-phase, 47-63 Hz |
| Output frequency | 0-400 Hz |
| Control I/O | 2 analog inputs, 6 digital inputs (2 high-speed to 50 kHz), 1 analog output, 2 digital outputs, 2 programmable relays |
| EMC | Built-in C3 filter (IEC 61800-3) |
| Enclosure | IP20, air cooled |
| Ambient | Full rating to 40 °C; derate 1% per °C above 40 °C, 50 °C max |
| Approvals | UL, cUL, CE, functional safety |
Warranty & Shipping
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Sold and supported by United Industries, a certified Unitronics distributor.
