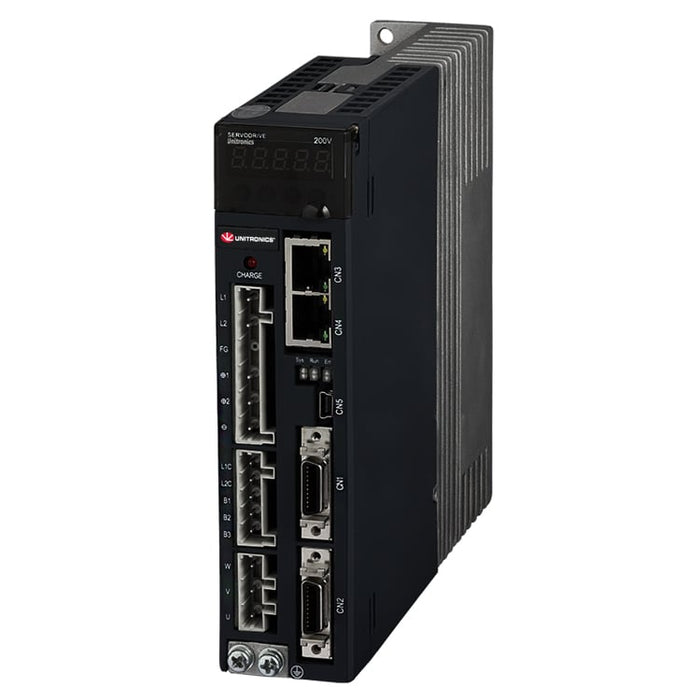

UMD-0030C-B3 Unitronics B3 Series Servo Drive – 3kW (4HP), 200-230V 3-Phase, CANopen
by Unitronics
CALL or click FOR QUOTE
The Unitronics UMD-0030C-B3 is a B3 series AC servo drive rated 3 kW (4 HP) for a 200-230 V three-phase supply, with CANopen communication. It drives Unitronics 3 kW B3 servo motors in the 180 mm frame, with absolute or incremental encoders.
Matching Motors in Stock
- UMM-0030CA-B3: absolute 23-bit encoder, no brake
- UMM-0030CAB-B3: absolute 23-bit encoder, with brake
- UMM-0030CN-B3: incremental 20-bit encoder, no brake
- UMM-0030CNB-B3: incremental 20-bit encoder, with brake
Key Specifications
| Part number | UMD-0030C-B3 |
|---|---|
| Series | Unitronics UMD B3 |
| Rating | 3 kW / 4 HP |
| Supply | 200-230 V AC, three-phase |
| Network | CANopen |
| Series features | Up to 8-axis control, one-parameter tuning, built-in diagnostics |
| Ambient | 0 to 40 °C, 20-80% RH non-condensing |
| Approvals | UL (220 V products) |
Ordering Note
- Unitronics lists the B2/B3/B4 and E3 servo series with limited availability, mainly for repair or replacement. For new machines Unitronics recommends the B5/E5-S series.
Warranty & Shipping
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Sold and supported by United Industries, a certified Unitronics distributor.
Call for best price & availability: +1-800-724-4209
