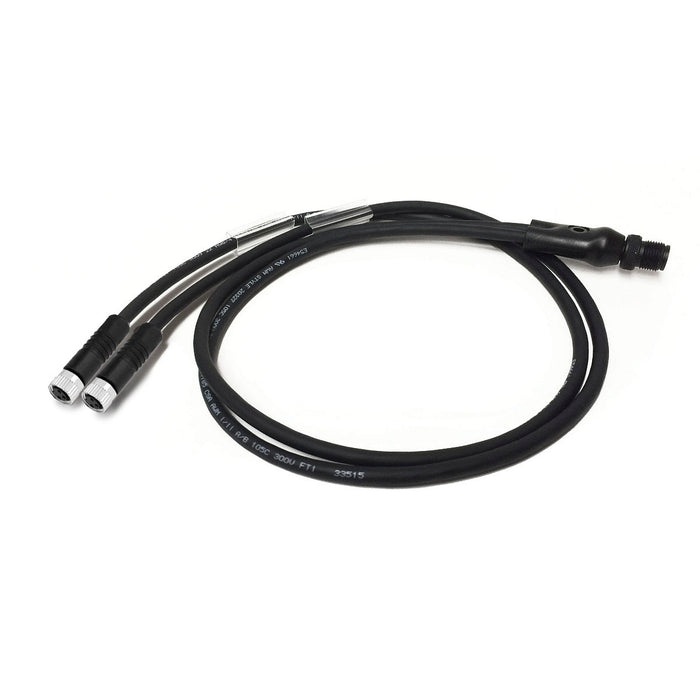

U2-R4C-FS3KZ-T661 – HTM Sensors Splitter M12 Male Straight 2 x M8 Female Straight 4 Pin 1 m TPE
by HTM
CALL or click FOR QUOTE
The HTM Sensors U2-R4C-FS3KZ-T661 is a Splitter M12 Male Straight 2 x M8 Female Straight 4 Pin 1 m TPE. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | U2-R4C-FS3KZ-T661 |
|---|---|
| Cable type | Splitter |
| Connector A | M12 Male Straight |
| Connector B | 2 x M8 Female Straight |
| Cable length | 1 m |
| Pins | 4 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Wire gauge | 22 AWG |
| Stranding | 19x34 |
| Contact carrier | PUR |
| Body | PUR |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | TPE |
| Coupling nut | PTFE Coated Brass |
| O-ring | Viton |
| Temperature range | -25 C - +105 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
