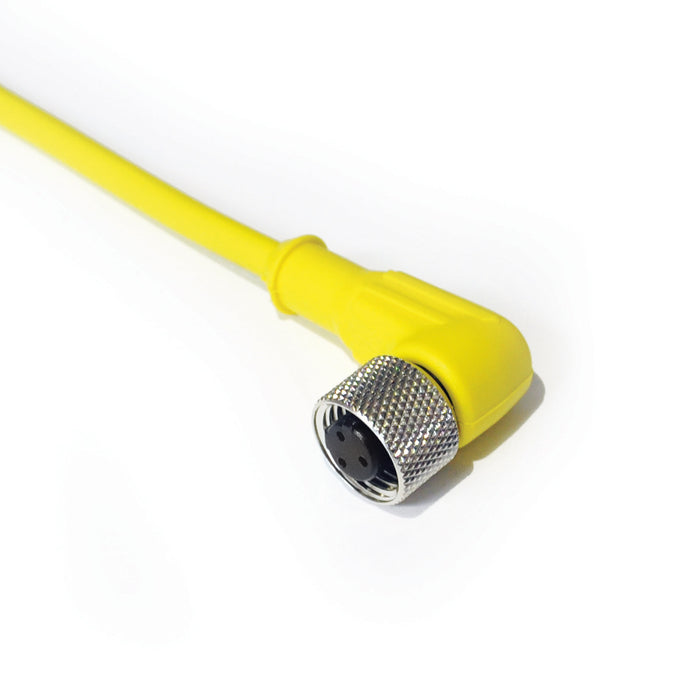

U-FA3TAV3115 – HTM Sensors Single Ended Cable 1/2-20 Female Angled 3 Pin 15 m PVC
by HTM
CALL or click FOR QUOTE
The HTM Sensors U-FA3TAV3115 is a Single Ended Cable 1/2-20 Female Angled 3 Pin 15 m PVC. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | U-FA3TAV3115 |
|---|---|
| Cable type | Single Ended Cable |
| Connector B | 1/2-20 Female Angled |
| Cable length | 15 m |
| Pins | 3 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 300 V AC |
| Wire gauge | 22 AWG |
| Stranding | 0.13x26 |
| Contact carrier | TPU |
| Body | TPU |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | PVC |
| Coupling nut | Nickle Plated Brass |
| Protection class | IP 68 |
| O-ring | Viton |
| Temperature range | -25 C - +90 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
