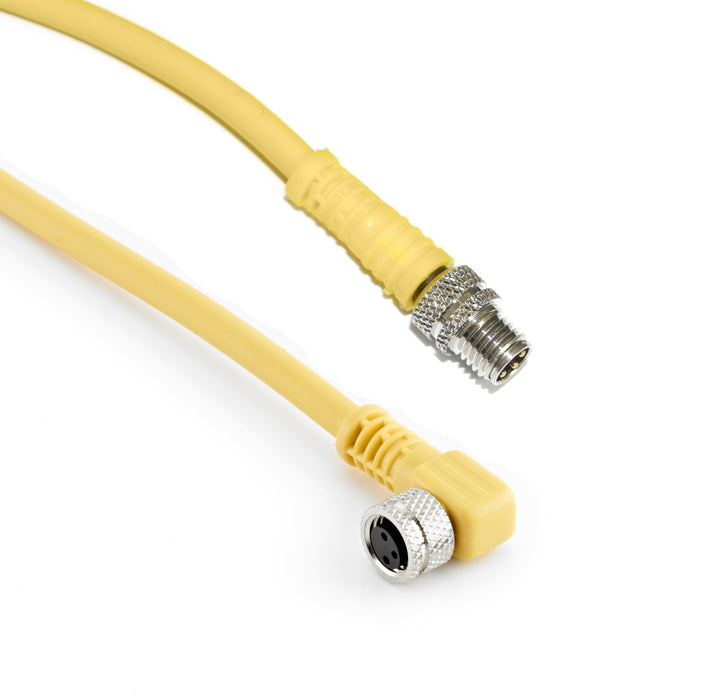

C-MS3TZ-V072+C-FA3TZ-V072 – HTM Sensors Double Ended Cable M8 A-Coded Male Straight M8 A-Coded Female Angled 3 Pin 2 m PVC
by HTM
CALL or click FOR QUOTE
The HTM Sensors C-MS3TZ-V072+C-FA3TZ-V072 is a Double Ended Cable M8 A-Coded Male Straight M8 A-Coded Female Angled 3 Pin 2 m PVC. Use it to connect sensors and other field devices to your control system with a secure, industrial-grade connection.
Key Specifications
| Part number | C-MS3TZ-V072+C-FA3TZ-V072 |
|---|---|
| Cable type | Double Ended Cable |
| Connector A | M8 A-Coded Male Straight |
| Connector B | M8 A-Coded Female Angled |
| Cable length | 2 m |
| Pins | 3 Pin |
| Locking system | Screw Lock |
| Rated current | 4 A |
| Rated voltage | 60 V AC / 75 V DC |
| Wire gauge | 24 AWG |
| Stranding | 0.1x32 |
| Contact carrier | TPU |
| Body | TPU |
| Contact material | CuSn |
| Contact plating | Au |
| Jacket type | PVC |
| Coupling nut | Nickel Plated Brass |
| Protection rating | IP68 |
| O-ring | Viton |
| Temperature range | -25 C - +90 C |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
