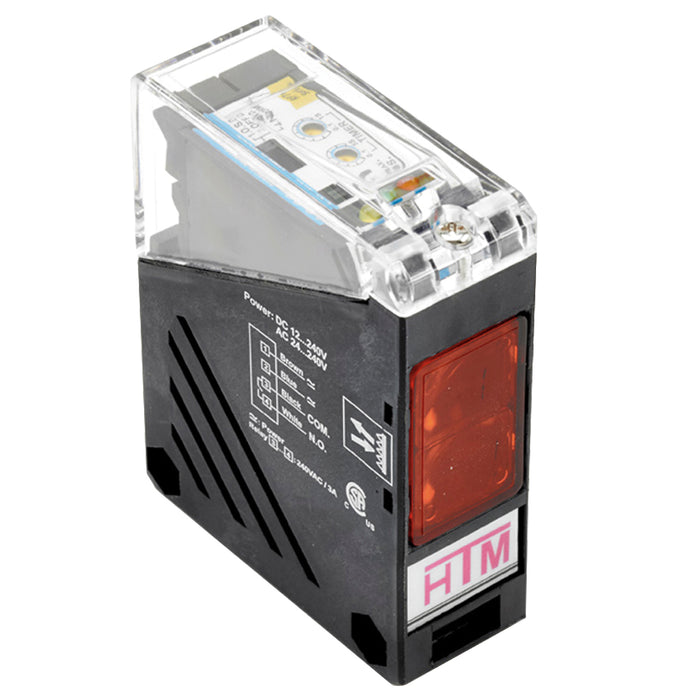

RP76-T028MD-EY9T4L – HTM Sensors Rectangular RP76 Photoelectric Sensor 28 m
by HTM
CALL or click FOR QUOTE
The HTM Sensors RP76-T028MD-EY9T4L is a Rectangular RP76 Photoelectric Sensor 28 m. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | RP76-T028MD-EY9T4L |
|---|---|
| Type | RP76 Photoelectric |
| Shape | Rectangular |
| Housing | Glass Fiber reinforced plastic |
| Supply voltage | 10-30 V DC |
| Photo type | Thru-Beam Emmiter |
| Sensing range | 28 m |
| Max current | 100 mA |
| Current consumption | <35 mA |
| Overload trip point | >120 mA |
| Response time | 2 ms |
| Connection | Terminal Chamber |
| Operating temperature | 0 C - +55 C |
| Protection rating | IP66 |
| EMC rating | IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3V/m(in30-1000MHZ), ETF>1KV, ESD>4KV(contact) |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.2 (10-55HZ, 1mm amplitude in x,y and z directions for 30 min)/IEC-60947-5-2 Part 7.4.1 (30 g, 11 ms in x, y, and z directions for six times |
| Short circuit protected | No |
| Reverse polarity protected | No |
| Weld field immune | No |
| Lens material | Acrylic |
| Indicator leds | Power: Red |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
