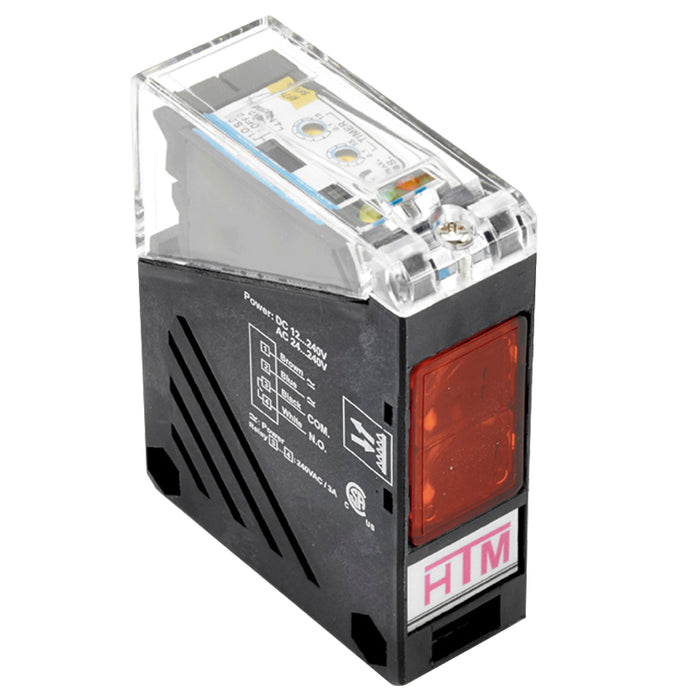

RP76-D0300R-CY9Q4LM-BS – HTM Sensors Rectangular RP76 Photoelectric Sensor 300 mm SPST Relay LO/DO Selectable 1/2-20UNF Micro
by HTM
CALL or click FOR QUOTE
The HTM Sensors RP76-D0300R-CY9Q4LM-BS is a rectangular RP76 photoelectric sensor with a 300 mm sensing range, an SPST Relay light-on/dark-on selectable output, a 20-240 V AC/DC supply and a 1/2-20UNF Micro connector. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | RP76-D0300R-CY9Q4LM-BS |
|---|---|
| Type | RP76 Photoelectric |
| Shape | Rectangular |
| Housing | Glass Fiber reinforced plastic |
| Supply voltage | 20-240 V AC/DC |
| Photo type | Diffused |
| Sensing range | 300 mm |
| Output type | SPST Relay |
| Output function | LO/DO selectable |
| Max current | 3 A |
| Current consumption | <2 VA |
| Response time | 40 ms |
| Connection | Quick Disconnect |
| Connector | 1/2-20UNF Micro |
| Operating temperature | 0 C - +55 C |
| Protection rating | IP66 |
| EMC rating | IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3V/m(in30-1000MHZ), ETF>1KV, ESD>4KV(contact) |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.2 (10-55HZ, 1mm amplitude in x,y and z directions for 30 min)/IEC-60947-5-2 Part 7.4.1 (30 g, 11 ms in x, y, and z directions for six times |
| Short circuit protected | No |
| Reverse polarity protected | No |
| Weld field immune | No |
| Lens material | Acrylic |
| Indicator leds | Power: Yellow Output: Green Margin: Red |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
