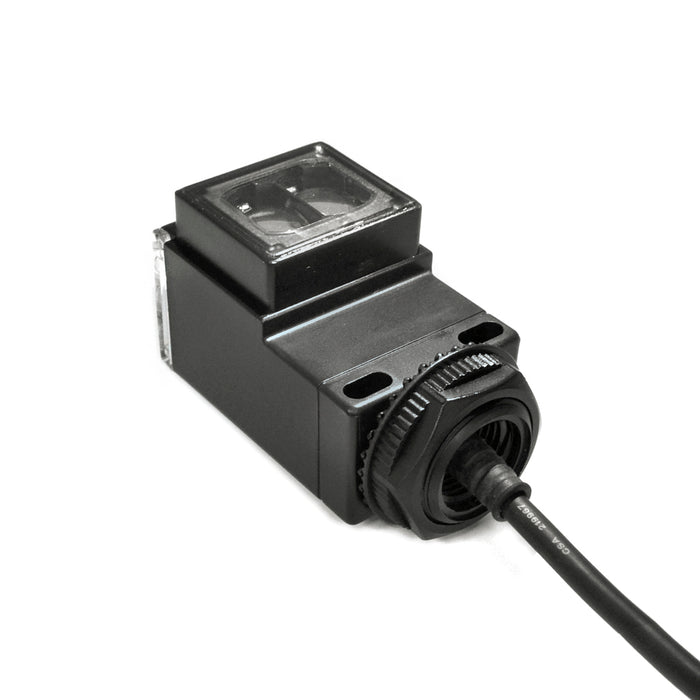

RP74-T152MR-CY9C5L2-T – HTM Sensors Rectangular RP74 Photoelectric Sensor Thru-Beam 152 m SPDT Relay LO/DO Selectable
by HTM
CALL or click FOR QUOTE
The HTM Sensors RP74-T152MR-CY9C5L2-T is a rectangular thru-beam RP74 photoelectric sensor with a 152 m sensing range, an SPDT Relay light-on/dark-on selectable output and a 20-240 V AC/12-240 V DC supply. Photoelectric sensors detect objects with a beam of light, allowing longer sensing distances than proximity sensors for presence detection, counting and positioning.
Key Specifications
| Part number | RP74-T152MR-CY9C5L2-T |
|---|---|
| Type | RP74 Photoelectric Sensor |
| Body style | Rectangular |
| Housing | Glass Fiber Reinforced Plastic |
| Supply voltage | 20-240 V AC/12-240 V DC |
| Sensing mode | Thru-Beam |
| Sensing range | 152 m |
| Output type | SPDT Electromechanical Relay |
| Operation mode | Light On/Dark On Selectable |
| Max current | 10 A at 120 V AC, 5 A at 240 V AC |
| Current consumption | < 30 mA |
| Response time | 15 ms |
| Connection type | 5 Wire 2 m cable |
| Operating temperature | -25 C - +55 C |
| Protection rating | IP67 |
| EMC rating | IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI>3 V/m (in 30-1000 MHz), ETF>1KV, ESD>4KV(contact) |
| Shock/vibration rating | IEC 60947-5-2, Part 7.4.2 (10-55 Hz, 1 mm amplitude in x, y and z directions for 30 min)/IEC-60947-5-2 Part 7.4.1 (30 g, 11 ms in x, y, and z directions for six times |
| Short circuit protected | No |
| Reverse polarity protected | No |
| Light source | Infrared LED 880 nm |
| Lens material | Acrylic |
| Indicator leds | Power: Yellow Output: Green Margin: Red |
| Timing options | No Delay, On Delay, Off Delay, One Shot selectable via switch |
| IO-Link | No |
| Matching bracket | RP74-A2 (Basic) / RP74-A1 (Plastic Swivel) |
Condition, Warranty & Shipping
- Condition: Factory new
- Warranty: 1-year United Industries warranty
- Ships from: Jamestown, NY
Call for best price & availability: +1-800-724-4209
