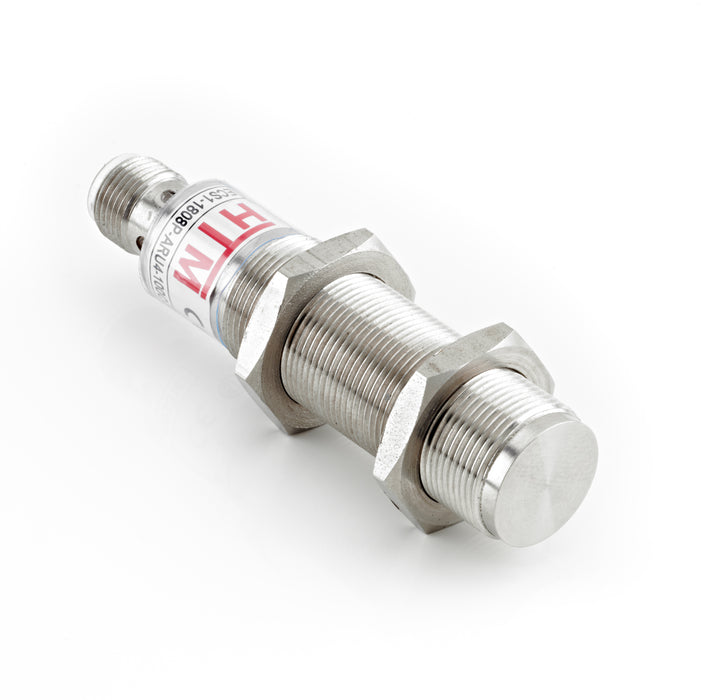

ECS1-1808C-ARU4-100C-316 – HTM Sensors M18 MetalHead Extended Range Proximity Sensor Shielded 8 mm DC 2-wire NO M12 Connector
by HTM
CALL or click FOR QUOTE
The HTM Sensors ECS1-1808C-ARU4-100C-316 is an M18 shielded MetalHead extended range proximity sensor with a 8 mm sensing range, a DC 2-wire normally open (NO) output, a 10-60 V DC supply and an M12 A-coded connector. Inductive proximity sensors detect metal targets without physical contact, making them a dependable choice for position and presence sensing on machinery, conveyors and automated equipment.
Key Specifications
| Part number | ECS1-1808C-ARU4-100C-316 |
|---|---|
| Type | Extended Range MetalHead Proximity Sensor |
| Shape | Cylindrical |
| Size | M18 |
| Sensing range | 8 mm |
| Mounting style | Shielded |
| Output type | DC 2-wire |
| Output function | Normally Open |
| Connection | 4 Pin Quick Disconnect |
| Connector | M12 A Coded Connector |
| Body length | 79 mm |
| Housing | Stainless Steel SUS316 |
| Sensing face | 1-Piece Stainless Steel |
| Protection rating | IP68 |
| Operating temperature | -20 C - +100 C |
| Supply voltage | 10-60 V DC |
| Leakage current | <0.8 mA |
| Max current | 100 mA |
| Overload trip point | >120 mA |
| Short circuit protected | Yes |
| Reverse polarity protected | Yes |
| Switching frequency | 500 Hz |
| Response time | 0.5 ms/0.5 ms |
| EMC rating | RFI>3V/m / EFT>1kV / ESD>4Kv (contact) |
| Shock/vibration rating | IEC 60497-5-2 Part 7.4.1&7.4.2 |
| Weld field immune | No |
| Weld spatter resistant | No |
| Matching cable | R-FS4TZ-P665 (Straight Connector) / R-FA4TZ-P665 (Angled Connector) |
| Matching bracket | HRAB-18 (Basic) / QT-18 (Quick Release) |
